Roll-Packer Trans-Pack Flexible II

The mobile roll packer.

The Trans-Pack Flexible II is the versatile member of the Bergmann Roll Packer family. It is easily transported to customers’ locations using a roll-off truck and performs its compaction work directly from the truck. This saves the customer up to 3-4 container transports. The waste management company brings the compaction service to the source of the waste/recyclables via a planned customer route.

Location: mobile, outside

Drive: Diesel, Electrohydraulic

Location: Container site, Industrial company, Material yard, Wholesale market

Type of deployment: Multiple containers at any location

Type of waste:
  • Cardboard box
  • Green waste
  • Paper
  • Plastic
  • Residual waste
  • Slide
  • Wood waste

Technical features

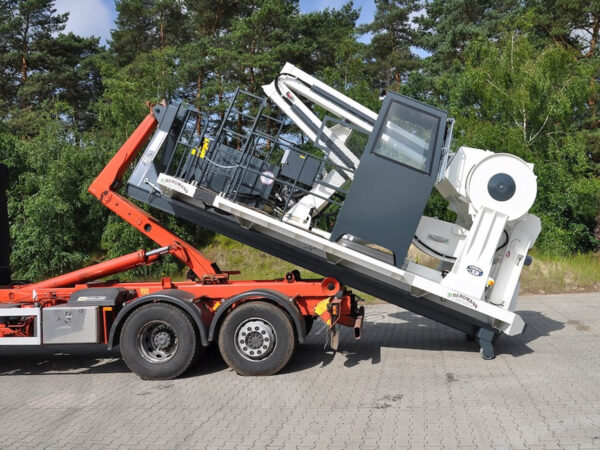

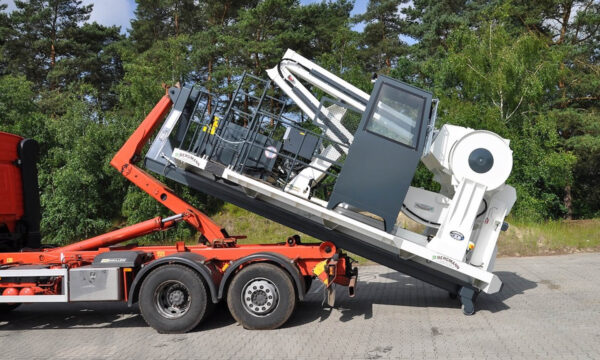

Aufladen einer transportablen Walzenpresse mit Abrollkipper

Use

Mobile and flexible for use with any number of open containers - stationary or on the move. Ideal for bulky and voluminous waste such as wood, pallets, cardboard or green waste.

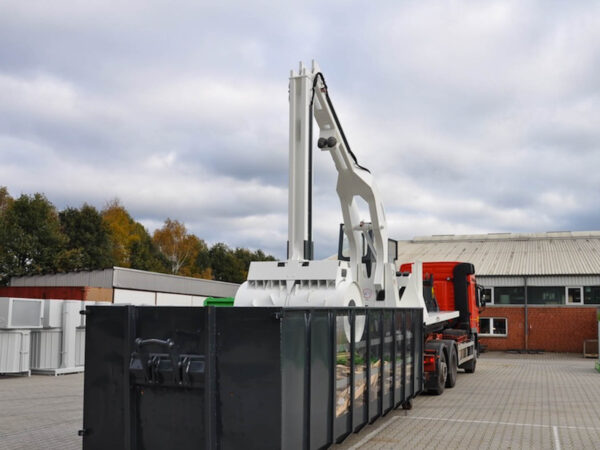

Roll-Packer-Trans auf Abrollkipper setzt Rückwärts an einen Altholz-Container

Compaction

Heavy compaction roller (approx. 2 t) with wear-resistant teeth ensures maximum compression of the material. Compaction in layers reduces the volume of waste to a minimum.

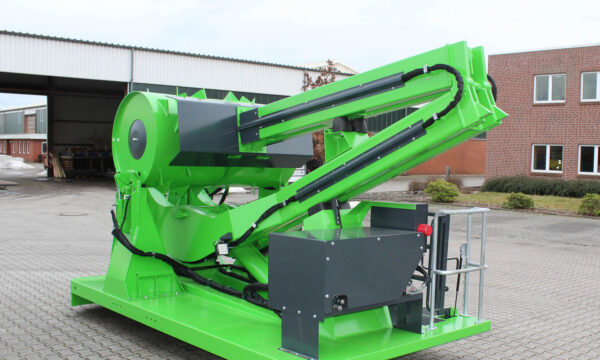

Walzenpresse als Auflieger für Pritschen-LKW

Drive

Linear roller movement with high compaction performance, stable design and robust roller drive for many years of use. Roller can be used from both sides of the container.

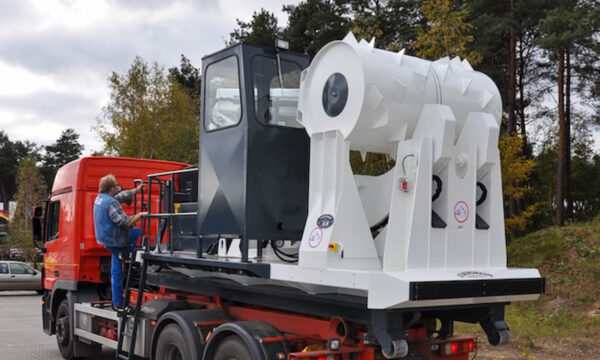

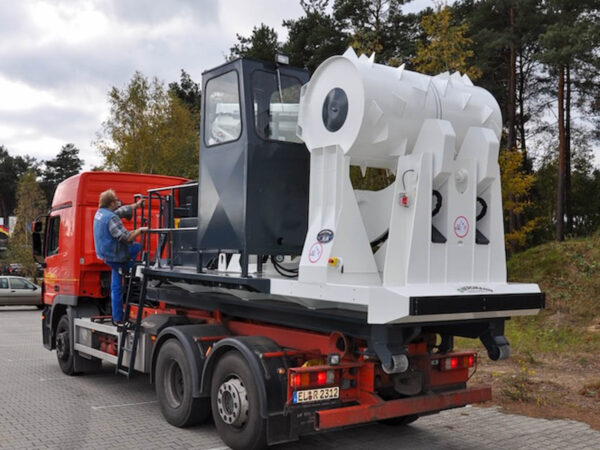

Abrollkipper mit Walzenverdichter

Cabin

Protected, elevated driver's cab with optimum view of the work area. User-friendly controls and safe environment even in bad weather.

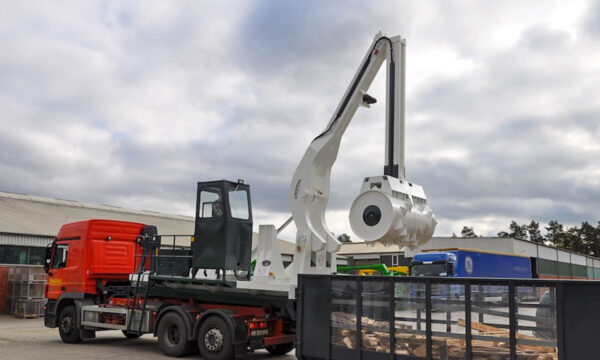

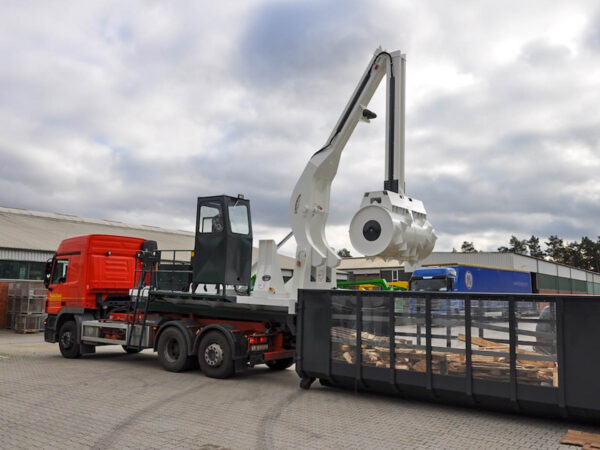

Verdichtungseinsatz mit einem Wlazenverdichter auf LKW

Operation

Simple control via clear control panel. Folding ladder and safety railing ensure safe ascent and descent. Emergency stop button and warning lights provide additional safety.

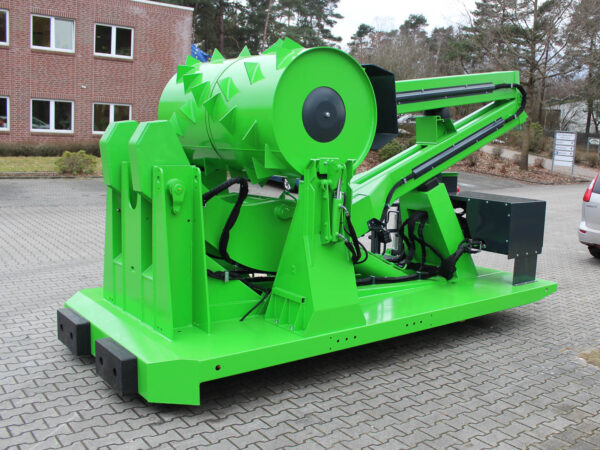

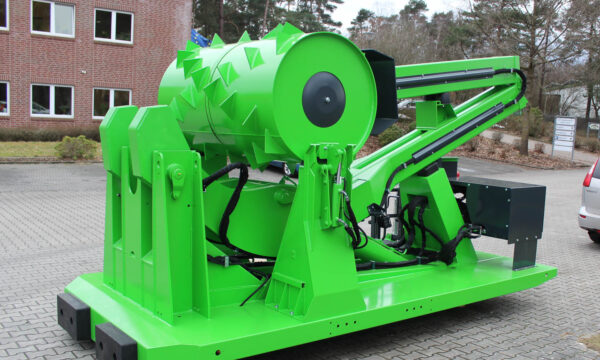

Roll-Packer Transportabel mit LKW

Flexibility

Suitable for containers up to 7 m in length, can be variably positioned on factory premises, recycling yards or industrial sites. Quick changeover between locations thanks to roll-off system.

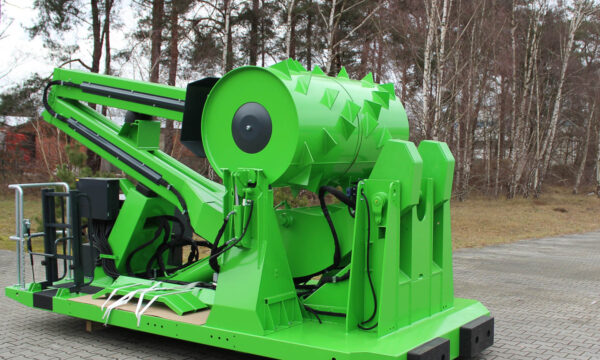

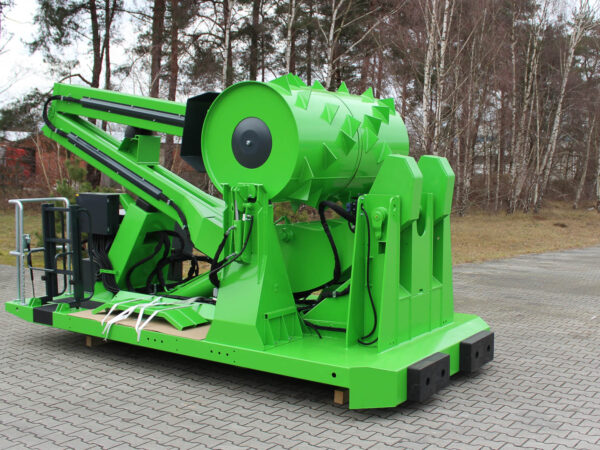

Fahrten zu verschiedenen Standorten mit der Walzenpresse mittels LKW möglich

Quality

CE-certified machine, manufactured from high-quality materials. Robust technology, long service life and guaranteed availability of spare parts.

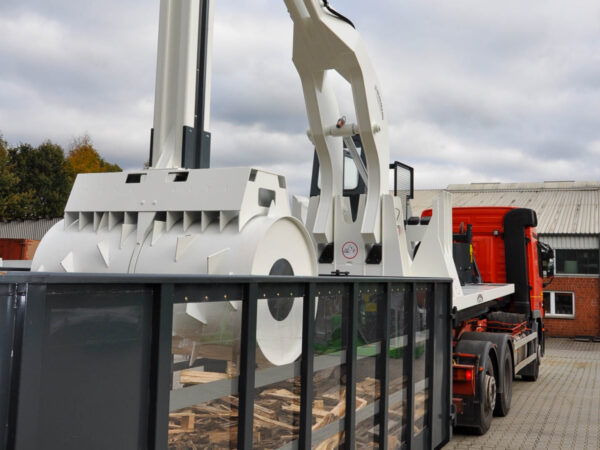

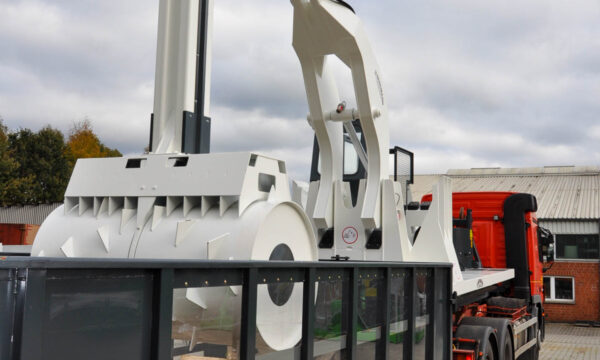

Roll-Packer-Trans auf Abrollkipper im Einsatz bei einem Altholz-Container

Additional equipment

Optionally available: diesel unit, special roller with cleaning, flashing light, bio-hydraulic oil, platform for transportation or special paintwork.

Description

Product name

Bergmann Trans-Pack-Flexible II RPT 7700

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Multiple containers at any location

Drive

Connection to truck hydraulics/electrics

Control voltage

12V / 24 V

Mass

Width: approx. 2500 mm
Length: approx. 5500 mm
Height: approx. 2450-5900 mm

Roller diameter: 1200 mm

Total weight

6300 kg

Rolling weight

approx. 2,000 kg

Types of waste

  • Chipboard, molded wood, construction timber
  • Slide
  • Cardboard
  • Residual waste
  • Insulation material
  • Pallets
  • Metals
  • Green waste

Location

  • Recycling centers
  • Recycling company
  • Container spaces
  • Industrial companies
  • Wholesale markets
  • Waste sorting plants

Description

The machine is powered by an optional diesel generator when stationary. In mobile applications, it is driven either by the truck’s hydraulic system or by the optional diesel generator. For transport, the Trans-Pack is mounted on an auxiliary platform and can then be picked up by a truck with a roll-off system. Alternatively, it can be mounted directly onto the chassis of a light truck.

The Trans-Pack Flexible II can be operated on open containers up to 7 meters in length, compacting from both the discharge and receiving sides.

The operator’s cab is positioned at a sufficient height, providing the operator with a clear view of the compaction drum’s working area and offering protection from inclement weather.

The compaction drum is driven by hydraulic motors inside the drum. Manually moving the drum back and forth compacts the waste layer by layer.

Additional equipment

  • Additional ladder
  • External emergency stop button
  • Flashing light during machine operation
  • Truck platform
  • Diesel genset
  • Special roller with roller cleaning
  • Front protective grille
  • Special paintwork
  • Bio-hydraulic oil
