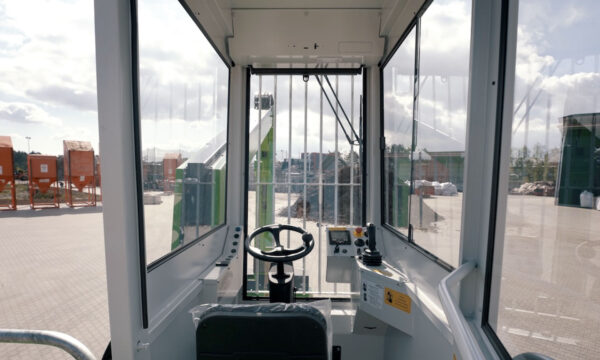

Blick aus der Fahrerkabine des Mobil Jumbo

verdichten von Altholz durch elektrischen Roll-Packer

Walze von Roll-Packer verdichtet Altholz

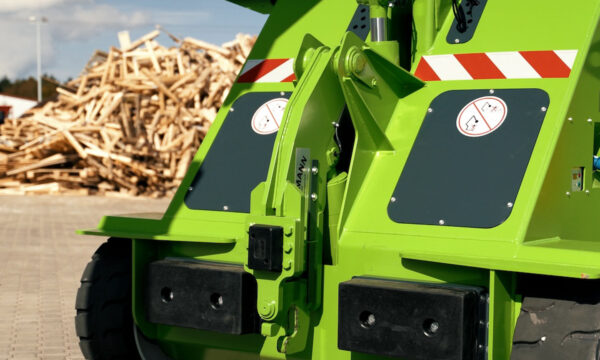

verschiebe Haken Mobil Jumbo mit Gelenkkopf

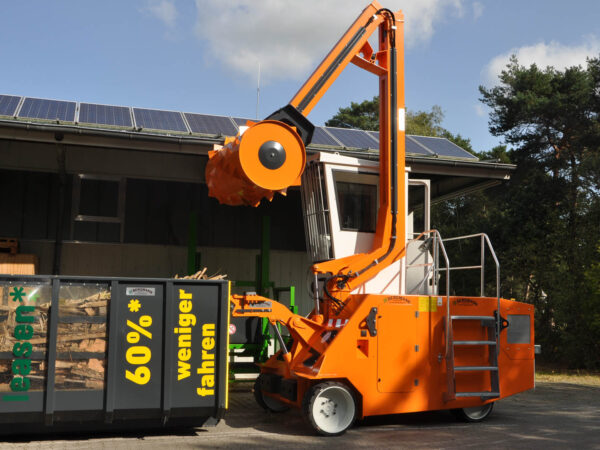

Schiebevorrichtung eines Mobil Jumbos mit Container

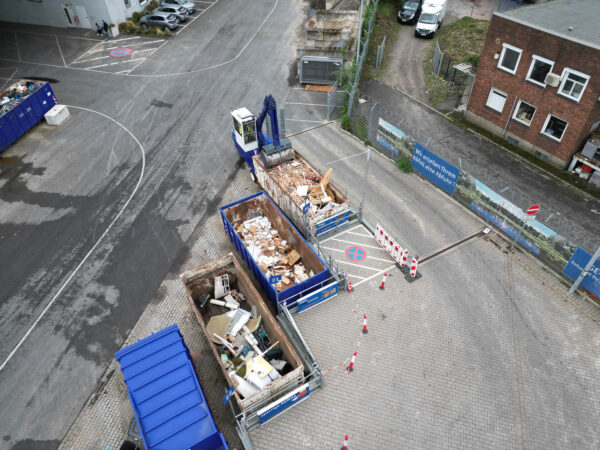

Blick auf einen Wertstoffhof von oben mit Mobil Jumbo

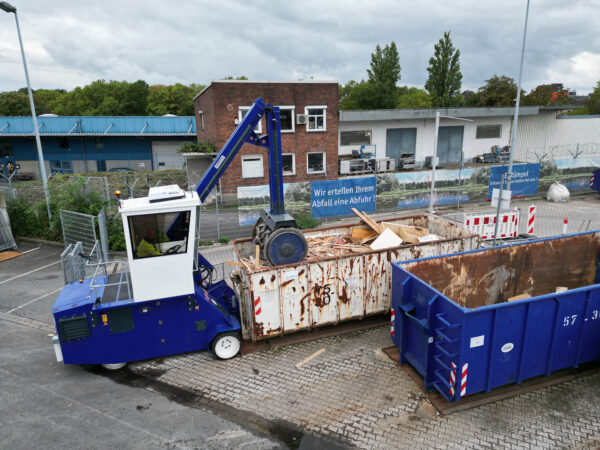

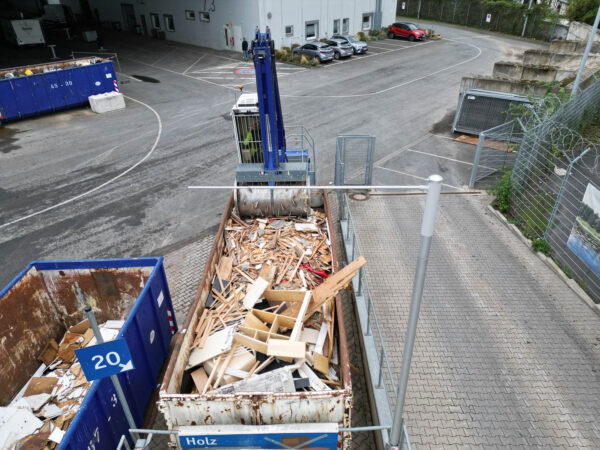

Hiolzverdichtung mit mobilem Walzenverdichter

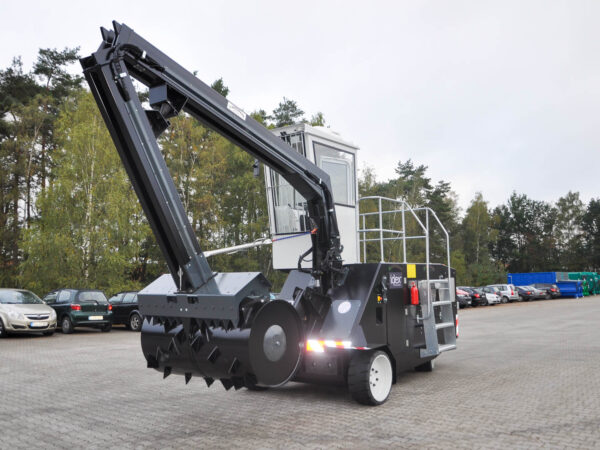

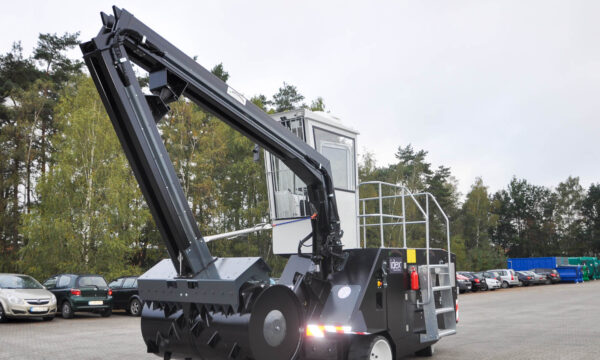

Roll-PackerRPM 7700-VIII “Mobile-Jumbo VIII”

Mobile Compaction in Multiple Open Containers

The proven, diesel-powered MOBILE-JUMBO RP 7700 M-VIII is equipped with a hydraulic drive for travel as well as compaction and can be moved independently within a given area.

The Mobile-Jumbo is the original BERGMANN-developed compactor, offering the highest reliability and quality, and can be used with any number of open containers within a single area. More than 20 years of experience set standards in durability and ease of maintenance.
The continuous rolling motion of the heavy compaction drum constantly breaks up, shreds, and compacts the material being poured. This enables compaction ratios of 3:1 or higher. As a result, cost savings of up to 60% are possible, leading to rapid amortization.
The patented container moving device of the RPM 7700 Mobile-Jumbo also offers the advantage that a truck does not need to be ordered separately to exchange a full container. This saves additional costs.

Send request Download area

Location: mobile, outside

Drive: Diesel, Electrohydraulic

Location: Container site, Industrial company, Material yard, Wholesale market

Type of deployment: Container site, wholesale market, industrial plant, recycling centre

Type of waste:

Cardboard box
Green waste
Paper
Plastic
Slide
Wood waste

Extremely efficient

Robust

Collision protection for front wheels. Solid rubber tires. Easy to operate control stand. Multifunction joystick

Environmentally friendly

The integrated common-rail injection diesel engine with diesel particulate filter complies with the latest emissions standard.

Safe

Safety glazing and protective grating for the windshield as well as a lockable door ensure the safety of the driver during the entire rolling time. The raised driver's cab and lowered windshield give the driver an optimum view into the container.

Reliable

The hydraulic drive, which has been tried and tested for decades, and the oil cooler integrated as standard guarantee high machine availability.

Simple

The machine is easy and convenient to operate. After a short briefing, anyone can easily take over the controls via a multifunction joystick.

Flexible

As an option, the machine can maneuver containers up to 12 t with the help of the patented container traversing device. Without a truck! This increases the availability of containers (e.g. at weekends).

Easy to maintain

Generously dimensioned maintenance doors allow easy access to all important technical and hydraulic elements and thus facilitate machine maintenance.

Video

See the BERGMANN mobile jumbo in action!

Learn how it reduces waste volume, optimizes container capacity, and saves costs. Discover the details.

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Description

Product name

Bergmann Roll-Packer RPM 7700 VIII "Mobile-Jumbo"

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Mobile roll packer with serrated roller for compaction in several open containers up to 7 m long

Drive

3-cylinder common-rail Kubota diesel engine approx. 1800 ccm in accordance with the latest TIER 4/Stage V emissions standard incl. diesel particulate filter

Useful volume

Various roll-off containers with a height of min. 2500 mm to max. 2700 mm (optional 3100 mm), container length up to max. 7000 mm

Mass

Width: approx. 2930 mm
Length: approx. 3750 mm
Height: approx. 7100 mm

Dead weight

approx. 7000 kg

Tested

Types of waste

Cardboard box
Plastic
Green waste
Wood waste
Light scrap

Location

Material yards
Recycling company
Container spaces
Industrial companies
Wholesale markets
Waste sorting plants

Equipment

Raised driver’s cab 4000 mm for a view into the container
Ergonomic access to the driver’s cab
Side windows and rear window made of toughened safety glass (ESG)
Protective grille in front of the windshield
Enlarged front window tilted forwards for a good view into the container as well as a view of the optional container moving device
Decoupling of the cab from the machine body by means of hydro dampers
ergonomic seat
Adjustable steering column
Continuously programmable roll path adjustment from the driver’s cab
Infinitely variable electronic drive via multifunction joystick

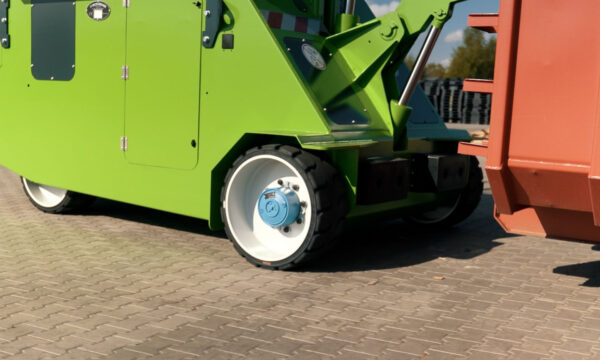

Heavy-duty solid rubber tires incl. collision protection for front wheels
Digital speed display
Interior lighting
Sun visor
2 halogen headlights at the front of the upper cab area
Front windshield wiper with windshield washer system
Acoustic reversing signal
Diesel-powered cabin heater
Windshield blower
CANBUS system
Telecommunication module for remote diagnostics

Special accessories

Air conditioning
Patented container traversing device for containers up to 12 t
Radio

Mode of operation

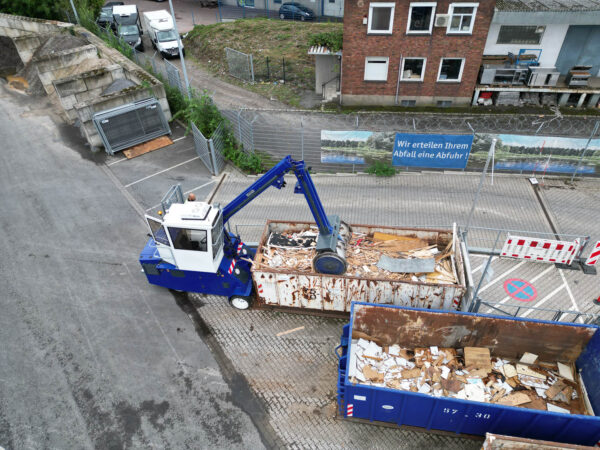

The Mobile Jumbo at a recycling center, a typical place of use. Here, all containers can be compacted with just one Mobil Jumbo

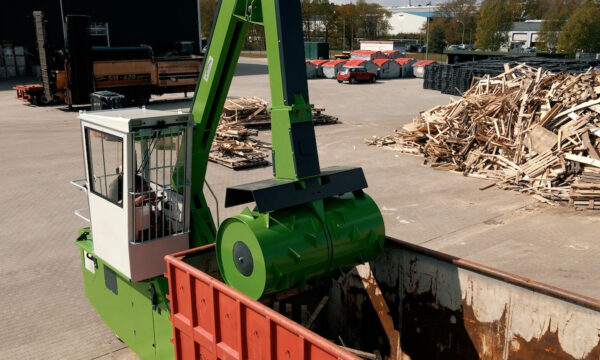

The specially equipped compaction roller breaks, tears and compacts the waste. Even during the compaction process, filling can continue.
Once the container has been filled, it is pulled from the container storage area using the container moving device without the help of a truck and prepared for removal.
Now an empty container is taken from the depot and placed back in the row.

Function

Mobile volume reduction and compaction of large quantities of waste and garbage in several open containers
Crushing and compaction in layers by rolling movement of a specially equipped compaction roller
Compaction directly in open containers up to 7 m long
Continuous fillability
with container traversing device for container weights up to 10 t

Economic efficiency

The Mobile Jumbo is a flexible and efficient solution for compacting waste in any number of open containers at one location. Equipped with its own drive, it enables the waste volume to be minimized to a fraction of the original volume with maximum flexibility. This significantly increases the service life and availability times of the containers.
A single machine is sufficient to optimally compact the volume of waste in the containers and thus minimize the number of emptying operations. Without the Mobile Jumbo, the container contents consist on average of 70 % air and only 30 % waste. With the Mobile Jumbo, this ratio is reversed.
The Mobile Jumbo can be used without any structural changes and pays for itself in a very short time. The existing collection system remains in place and there is no need for pre-shredding, cutting or folding of filling material. Even large quantities of bulky waste such as pallets, bulky waste or cable drums can be handled without any problems.

Continuous filling of the container during the compaction process is possible. The Mobil Jumbo also offers convenient and simple operation.
Thanks to its hydraulic drive, the Mobil Jumbo is low-maintenance and designed for continuous operation. With over 20 years of experience, Bergmann follows the highest quality standards and manufactures a technically and constructively mature product with the Mobil Jumbo. We also offer rapid availability of spare parts, which is guaranteed for at least 15 years. A service network is available worldwide.
