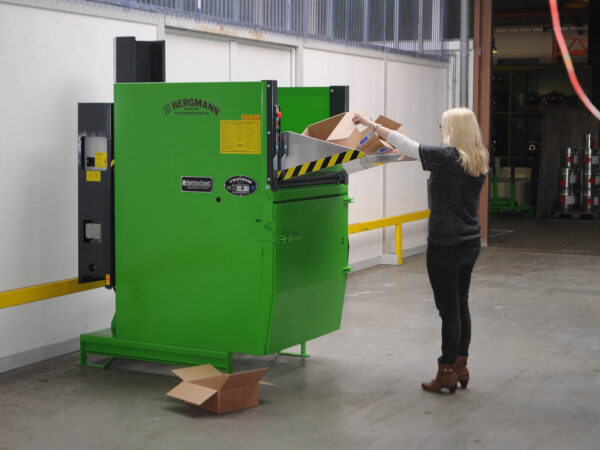

Papierpressen mit der Pack-Station PS800-E

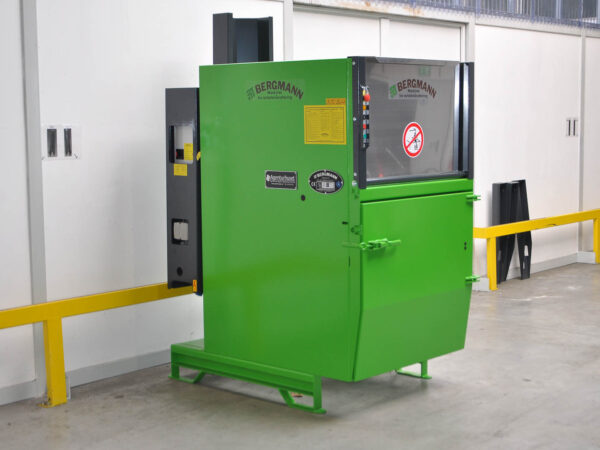

Pack-Station platzsparend installiert in Produktionshalle

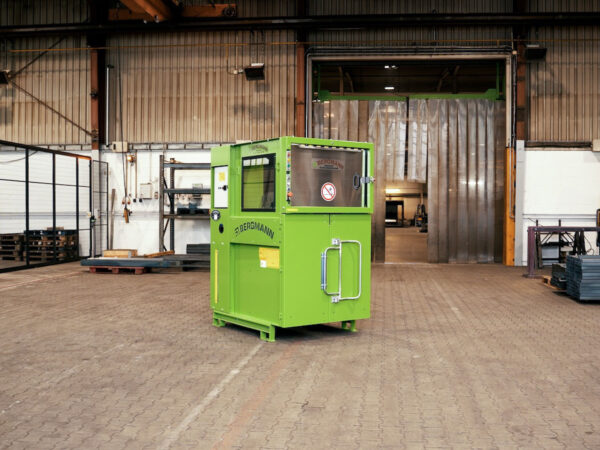

Pakstation von Bergmann
Packstation PS800

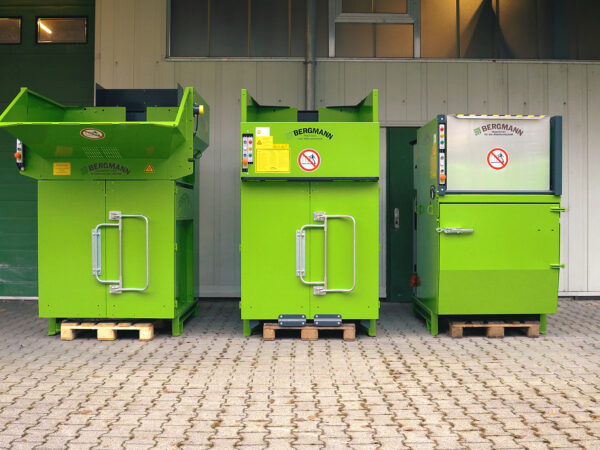

Ansicht drei Modelle Packstation

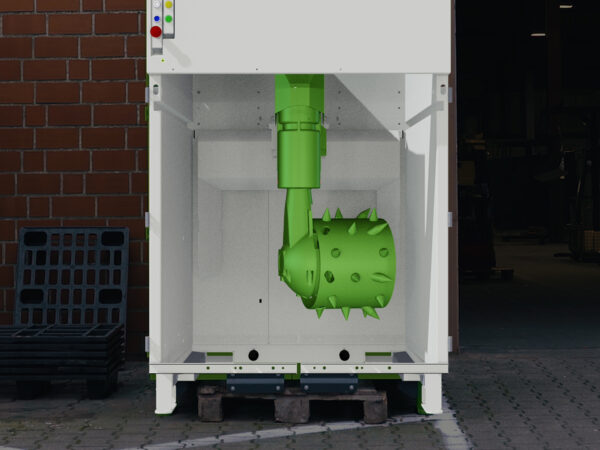

Innenansicht 3D von Packstation PS800
Wassersprühvorrichtung PS800

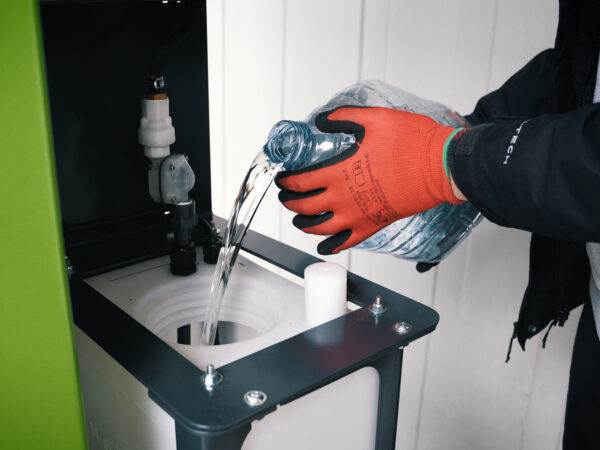

Befüllung Wasssertank für Sprühvorrichtung

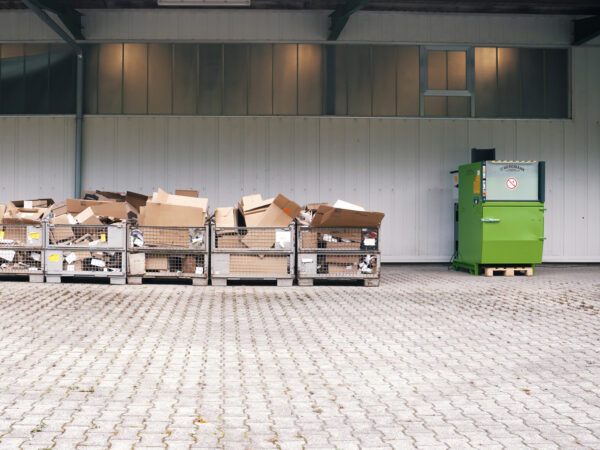

Papiermengen für Papier Walzenpresse
Einlegen Foliensack Packstation
Einlegen Foliensack Packstation
Schließvrorrichtung Packstation

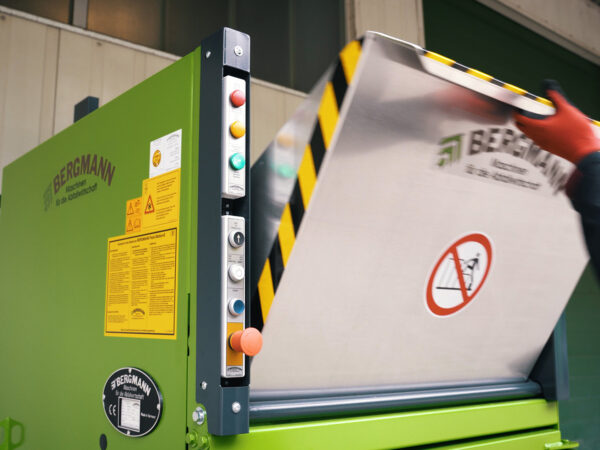

Einwurfklappe Packstation

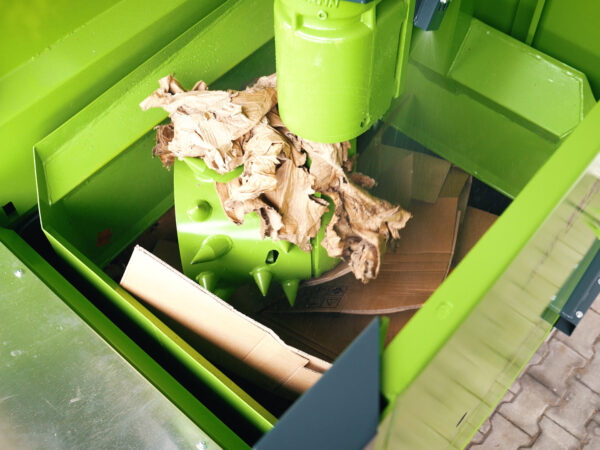

Walzenpresse mit Sprühvorrichtung

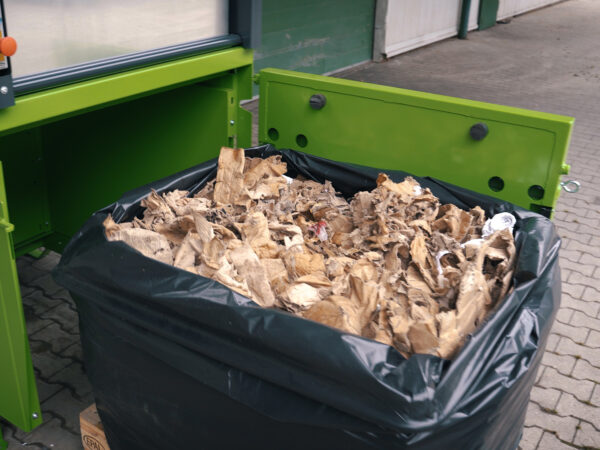

mit Altpapier gefüllter Foliensack einer PS00
Ps1400 und PS800 nebeneinander
Pack-Station grün
Packstation PS800
Öffnung zum Ausklappen der PS 800-E
Papierpressen mit der Pack-Station PS800-E
Pack-Station platzsparend installiert in Produktionshalle
Pakstation von Bergmann
Packstation PS800
Ansicht drei Modelle Packstation
Innenansicht 3D von Packstation PS800
Wassersprühvorrichtung PS800
Befüllung Wasssertank für Sprühvorrichtung
Papiermengen für Papier Walzenpresse
Einlegen Foliensack Packstation
Einlegen Foliensack Packstation
Schließvrorrichtung Packstation
Einwurfklappe Packstation
Walzenpresse mit Sprühvorrichtung
mit Altpapier gefüllter Foliensack einer PS00
Ps1400 und PS800 nebeneinander

PACK-STATION PS 800-E

Continuously feedable waste compactor

The packing stations (baling presses) developed by BERGMANN are THE alternatives for efficient and CONTINUOUS waste collection directly at the point of origin. For over 40 years, they have been helping to minimize the costs of waste handling with the highest compaction rates. A rotating compaction roller captures, tears and compacts the material continuously and effectively within a very short time.
Special features of the packing stations are the quiet and low-maintenance drives, the compaction in PE film bags on a standard pallet, the small space requirement and the high quality level of a product that has been perfected in terms of design and technology.

Send request Download area

Location: inside / outside, stationary

Drive: Electric

Location: Hospital, Hotel, Production plant, Restaurant, Retirement home, Service companies, Supermarket, Trade

Type of deployment: Waste compactor (baler) for recyclable waste and residual waste

Type of waste:

EXTREMELY economical

Compaction

800 l PE film bags on Euro pallets, compaction rate up to 10:1 for residual and recyclable materials

Operation

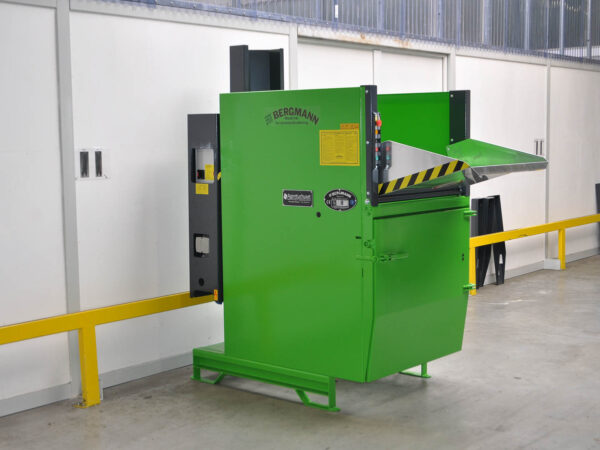

Continuous filling via fold-out filling chute, simple operation after brief instruction

Installation

Small footprint, for indoor or outdoor use directly at the waste collection point

Maintenance

Quiet, low-maintenance electric motors with robust compaction roller

Economic efficiency

Up to 80 % fewer disposal trips and costs - without the need for large containers

Work area

Easy emptying with pallet truck or forklift, clean and hygienic working environment

Robustness

Technically and constructively mature, CE-certified, "Made in Germany", long-term spare parts supply, worldwide service network

Accessories

Filling chute, roof, water sprinkler system, ozone generator, full alarm signal

Video

Experience the BERGMANN packing station in action!

Find out how waste volumes can be effectively reduced and costs saved at the same time. See for yourself why this solution is ideal for your waste compaction. Watch the video now!

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

Description

Product name

Bergmann Pack-Station PS 800-E

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Shredding and compaction of the filling material by right/left rotation of a specially equipped steel roller

Types of waste

  • Cardboard box
  • Paper
  • Slide
  • Styrofoam
  • Organic waste
  • Light waste
  • Aluminum waste
  • Tin cans
  • Refuse derived fuels
  • Light scrap

Locations

  • Supermarkets
  • Trade
  • Hotels
  • Restaurants
  • Hospitals
  • Senior centers
  • Production plant
  • Service companies

Dimensions

Width: 1084 mm
Depth: 1630 mm
Height: max. 2360 mm

Capacity

800 ltr PE bag

Bale size

Width: 950 mm
Depth: 1000 mm
Height: 900 mm

Insertion height

1.480 mm

Dead weight

940 kg

Noise level

64 dB

Connection

400V / 3 Ph / 50 Hz + N / 3 kW

Roller speed

30 U/min

Equipment

  • Roller for paper and cardboard
  • Throw-in chute
  • Electrical protection class IP 44 (dust-proof, splash-proof)
  • Branded hydraulic pump
  • Operating hours counter
  • Car timer
  • Oil level monitoring
  • Overload protection

Special accessories

  • Hipped roof made of glass fiber reinforced plastic
  • Switch-on light barrier
  • Full message via horn or flashing light

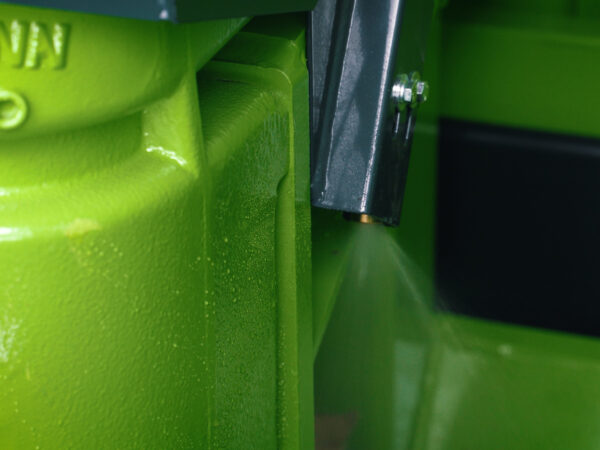

  • Water sprinkling against dust formation
  • Ozone generator against unpleasant odors
  • and much more
  • … ask for special designs

Technical properties

  • Small space requirement of only 1.10 x 1.60 m
  • Large filler opening (approx. 920 x 670 mm)
  • Enormously high processing capacity
  • Low operating noise of only max. 65 dBA at a distance of 1 m
  • Filling also possible via chutes or conveyor belts
  • Electrical equipment according to country specification in many voltage and phase variants
  • Easily accessible hydraulic unit facilitates service work
  • Machine CE certified
  • Completely “Made in Germany” by qualified and experienced employees

Economic efficiency

  • The Pack Station captures, tears and compacts the filling material using a specially equipped steel roller, which ensures a compaction rate of up to 10:1
  • Particularly suitable for collecting recyclable waste (e.g. cardboard, packaging film, polystyrene, fruit crates, cans, etc.) and residual waste
  • Continuous feeding possible – the feed chute can also remain open during compaction
  • Reduction in disposal costs of up to 80%
  • The Pack-Station can be operated by anyone. No training is necessary
  • Convenient operation thanks to clearly arranged push buttons
  • The transparent PE bag makes the type of waste visible at all times
  • It can be set up directly at the place where the waste is generated on your premises. There are no waste handling costs and therefore no personnel costs for employees
  • Also ideal for continuous filling through chutes or conveyor belts
  • Low maintenance due to hydraulic drive
  • The working environment remains clean and hygienic
  • Easy emptying and transportation of the compacted material
  • Minimizes the footprint and thus saves the storage costs of conventional containers
  • The packing station (baling press) replaces expensive and space-consuming large-capacity containers
  • Reduction of the number of emptying trips to a minimum = drastic savings due to lower disposal costs
  • Designed for tough continuous use
  • Proven worldwide for over 20 years with the highest quality standards
  • Low operating noise
  • Technically and constructively mature based on years of experience
  • High, fast and long-term availability of spare parts, guaranteed for 15 years
  • Worldwide service network

Mode of operation

  1. Simple and continuous filling thanks to the large filling chute.
  2. Collection, shredding and compaction of the waste by a special rotating roller.

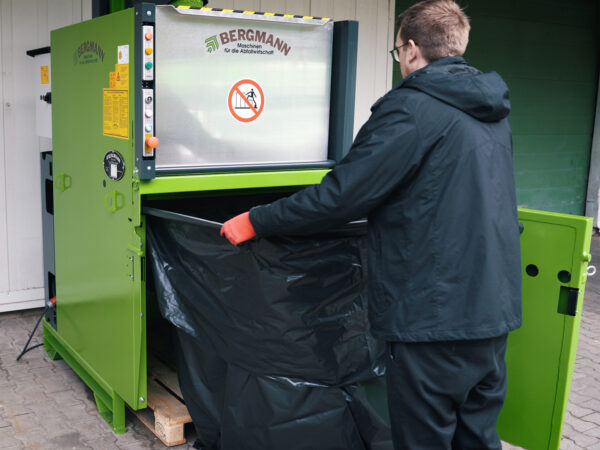

  3. The highly compacted waste is placed in a previously suspended PE bag with a standard pallet underneath and can be easily removed with a hand pallet truck.
  4. The waste bale ready for recycling can be conveniently transported to the collection point.
