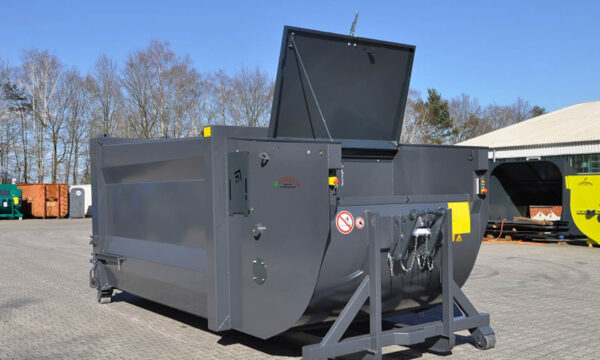

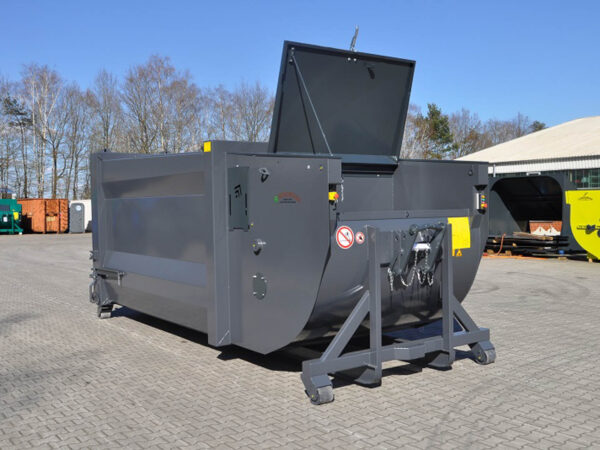

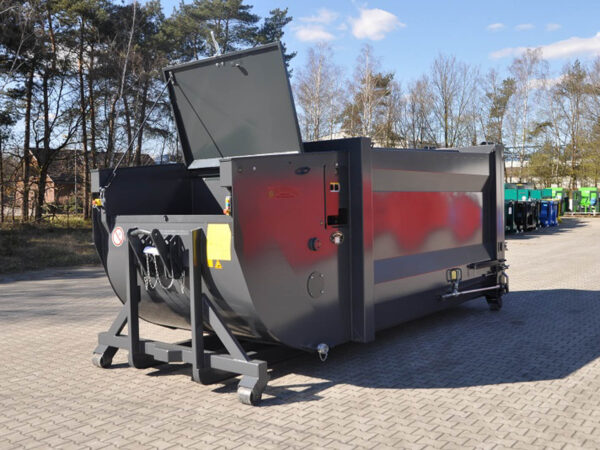

MPB918 mit geöffnetem Einwurf seitenansicht

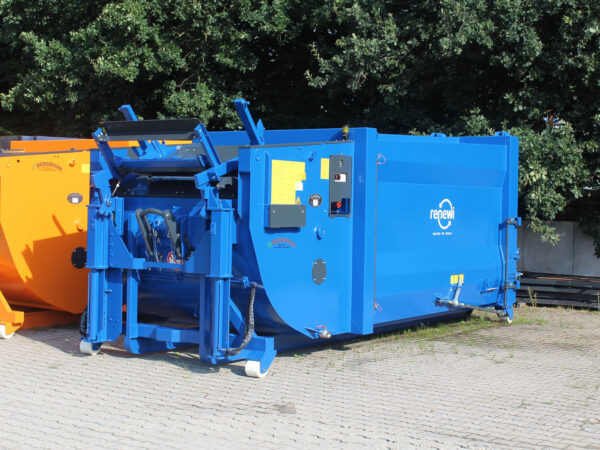

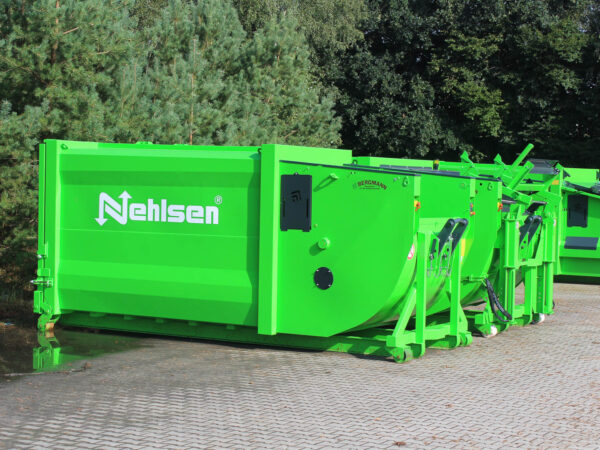

Müllpressen in Unternehmensfarben lackiert

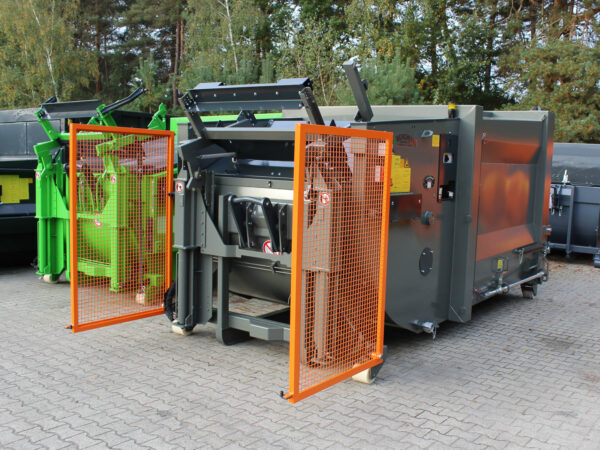

Schutzgitter um Kippvorrichtung bei Müllpressen

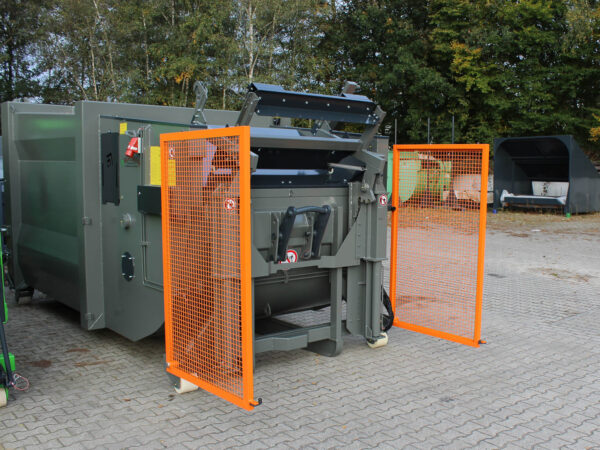

Sicherheit bei Kippvorrichtung von Müllpressen

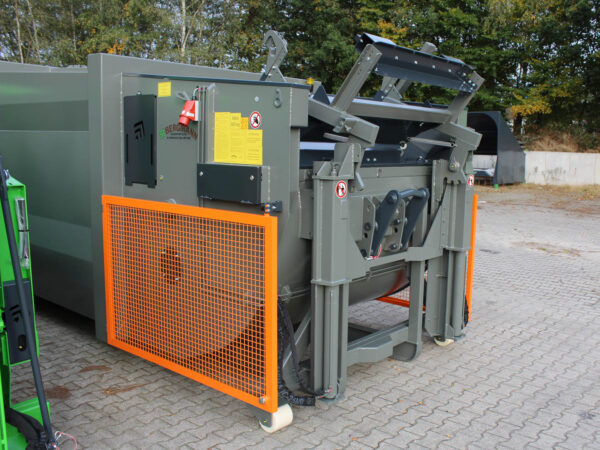

MBP Müllpress-Box von Bergmann mit Kippvorrichtung zum Transport

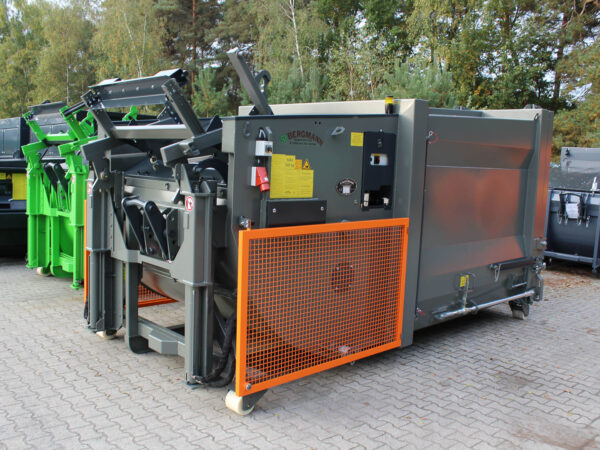

Müllpressen mit Kippvorrichtung und Schutzgitter transportabel

Mobil-Pack-Bin

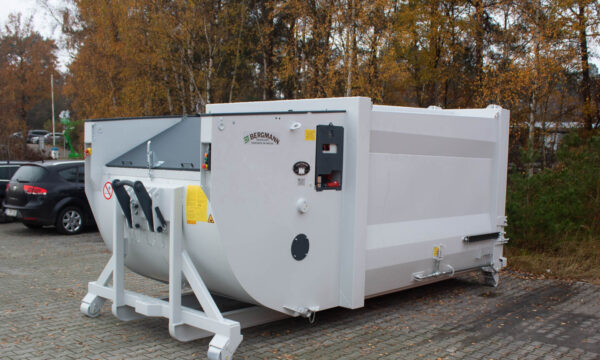

MPB 918 for roll-off tipper

Mobile waste compactor containers with self-cleaning pendulum piston for wet waste and residual waste

BERGMANN Mobil-Pack-Bin have been the solution for over 50 years when it comes to compacting wet waste such as organic waste, residual waste etc. to the highest possible degree. Among other things, this reduces disposal costs by up to 75 percent. The self-cleaning compaction system eliminates the need for cleaning and maintenance work under and behind the compaction piston. The MPB 918 waste compactor box is therefore not only extremely durable, but also offers many advantages in terms of hygiene, which is why it is particularly popular in hospitals. The unit can be pulled out to the side for easy access to all important components. Furthermore, the hydraulic cylinders are fitted with lubrication points on the outside as standard. This increases staff safety, especially when handling hospital waste and waste in retirement homes.

Send request Download area

Location: mobile, outside

Drive: Electrohydraulic

Location: Agriculture, Container site, Hospital, Industrial company, Manufacturing plant, Material yard, Print shops, Retirement home, Wholesale market

Type of deployment: Compaction of residual and wet waste

Type of waste:

Cardboard box
Organic waste
Residual waste

Waterproof wet waste compactors

Gentle

The container can be maneuvered easily thanks to the bracket support on both sides, while the plastic castors are gentle on the floor compared to conventional metal castors.

Unique

Thanks to the pendulum piston with self-cleaning effect, the machine remains fillable and clean at all times. This means that no additional cleaning work or costs are incurred.

Robust

Emptying is easy thanks to the special container design.

Powerful

Der Pendelkolben untergräbt den Müll im Rückhub, wirft ihn vor den Presskolben, fördert ihn im Vorhub in den Container und verpresst ihn.

Durable

Locks and fittings are galvanized to protect them from the weather.

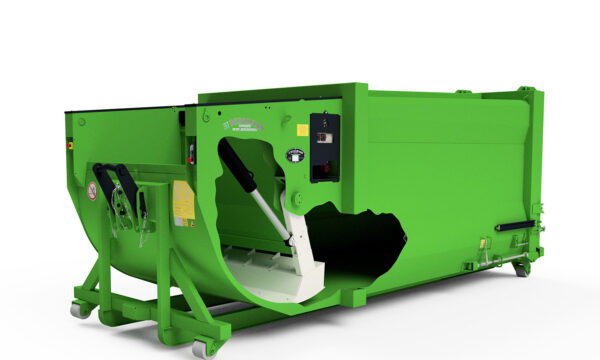

Müllpress Container ansicht in 3D mit Blick in die Presse

Uncomplicated

All lubrication points of the plunger are accessible from the outside. This offers absolute added value for the maintenance and care of the machine. Especially for waste from hospitals and retirement homes.

Safe

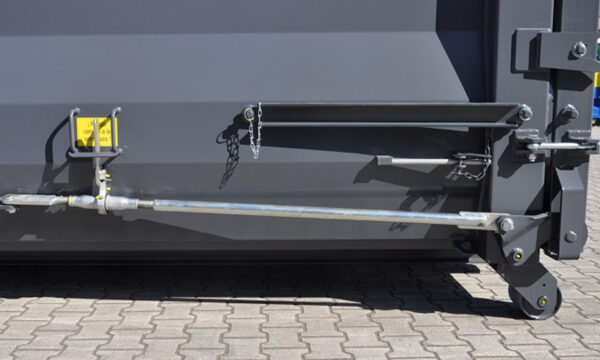

The integrated ratchet extension enables easy and safe emptying. TÜV-GS tested

Easy to maintain

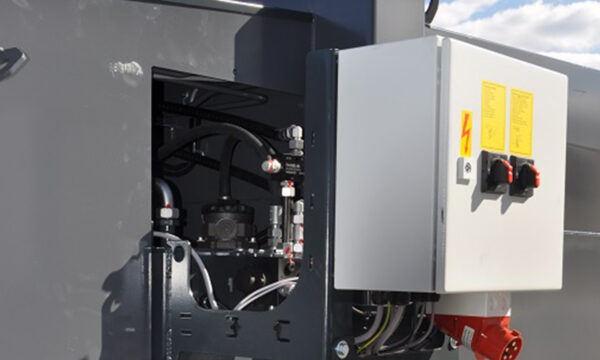

The central power unit for electrics and hydraulics can be easily pulled out and is therefore accessible at all times. The same applies to the main switch and motor protection switch.

Description

Product name

Bergmann Mobil-Pack-Bin MPB 918

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Mobile waste compactor containers with self-cleaning pendulum piston for wet waste and residual waste

Drive

5.5 kW | 32A CEE plug 400 V, 50 Hz, clockwise rotating field

Protection

25 A on site

Stroke volume

0,75 m³

Useful volume

24 m³

Mass

Width: approx. 2500 mm
Height: approx. 2650 mm
Length: approx. 5000 to approx. 7300 mm

Dead weight

approx. 4300 kg to approx. 5200 kg

Tested

CE / TÜV GS

Types of waste

Organic waste
Residual waste
Cardboard box
Hospital waste
Incontinence waste

Location

Supermarkets
Commercial kitchens
Hotels
department stores
Hospitals
Retirement homes
Print shops

Equipment

Front bracket mount / rear shunting hook
Bracket height adjustable to 1450 mm or 1570 mm
Oil drip tray underneath the unit
Low oil switch
Operating hours counter
Lockable main switch
Car timer
Stable locking of the unloading door
Rear shunting bracket
and much more.

Special accessories

Integrated lift and tilt device
Funnel structure
Rear cover hinged
Tilting device with load cell
Stepless full message
GSM remote control module with maintenance
Portal for locating and managing containers
etc.

Technical properties

Large filling opening (approx. 1800 x 1075 mm)
Processing capacity of 0.75^m3 per working stroke
Conical containers for easy emptying
High pressing force, 330 kN with MPB 918-SN/20
Robust, hydraulic drive unit with maintenance-free central hydraulic block
Press chamber and press plate made of extremely thick steel
Height-adjustable front support bracket for adaptation to all standard roll-off tippers
Solid swing flap, 3-way hinged, with extended, easy-to-handle ratchet lock (ideal for bunker filling)
Easily accessible hydraulic unit above the pressing chamber facilitates accessibility for service work
Great stability with economical dead weight
Machine TÜV/ GS and CE tested
Impact protection for the operating elements to protect against damage
Container is continuously welded
The press floor is made of highly wear-resistant quality steel
Completely “Made in Germany” by qualified and experienced employees

Standard equipment

Plug-in and fold-down mounting system at the front, making it quick and easy to adjust the mounting height to different dispenser types using bolts
Screwable mounting system at the rear, making mounting heights of 1450 mm and 1570 mm possible
Car timer
Oil level monitoring
Overload protection
Operating hours counter
Easy retrofitting of a lid over the filler opening possible
Hydraulically controlled and therefore robust changeover valve
Front & rear castors
TÜV/GS tested
Lubrication points Press cylinder can be lubricated from the outside
TÜV GS
Ratchet extension unloading door
Self-cleaning oscillating piston

Accessories

¾ Full and/or 100% full message
Filling level report via GSM module to you or to the disposal company
Tested watertightness through liquid filling
Manually or hydraulically operated lid over the filler opening in various designs (protects against filling by third parties and the ingress of rainwater)
Rubber seal on lid and/or unloading flap reduces odors and prevents the ingress of rainwater
Hydraulische Hub-Kipp-Vorrichtung integriert für Zapfen- bzw. Kammschüttung (hebt die Müllbehälter hoch und kippt den Inhalt in die Presse)
Remote control via cable
Switch-on light barrier in the hopper (machine starts as soon as something is thrown into the hopper)
Deletion connection
Drainage device
Double hydraulic pump
… and much more
… ask for special designs

Economic efficiency

BERGMANN invention and in-house development – THE original with 50 years of experience
Technically and constructively mature based on years of experience
Ideal for compacting wet and residual waste
Large filling opening (approx. 1800 x 1075 mm)
Can be continuously fed with waste
Reduction in disposal costs of up to 75%
Long service life = high availability
Extrem hohe Verdichtung, je nach Müllart, auf einen Bruchteil des ursprünglichen Volumens = hohe Füllgewichte von durchschnittlich 8 Tonnen Restmüll in der MPB 918-SN/20 und mehr
Reduction of the number of emptying trips to a minimum = drastic savings due to fewer disposal trips
Convenient operation thanks to clearly arranged push buttons
Easy emptying thanks to the convex sides of the container
Low corrosion due to contact-free hydraulic cylinders to the waste
Self-cleaning and therefore hygienic (no need to clean under and behind the plunger)
Low operating noise
Easy to convert and upgrade thanks to modular design, making it easy to adapt to different locations
Reduction in personnel costs for waste handling
Minimizes the footprint and thus saves the storage costs of conventional containers
The highest quality standard for 50 years
High, fast and long-term availability of spare parts, guaranteed for 15 years!
Worldwide service network

Mode of operation

Placement of the self-cleaning BERGMANN pendulum plunger in the rear position
During the press stroke, the entire feed chamber is still available for continuous feeding
On the return stroke, the pendulum piston underruns the material and throws it in front of the container opening
The material is pushed under the crushing edge into the BOX during the pre-stroke
