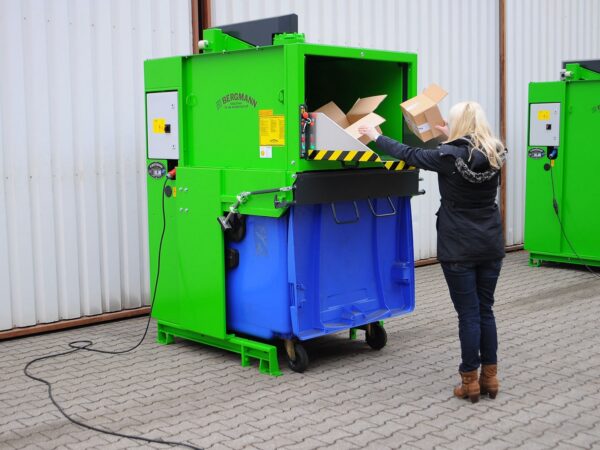

elektrische Packstation

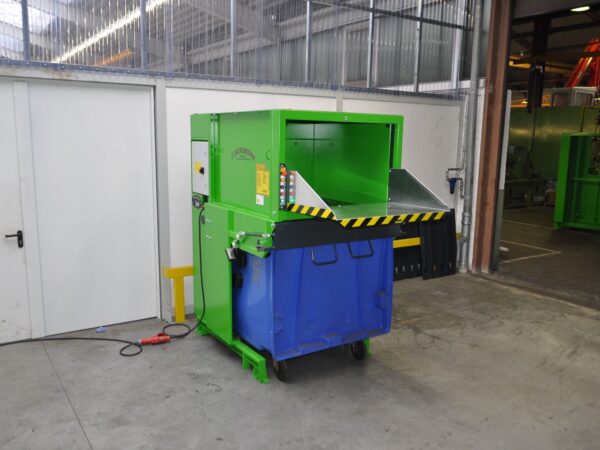

elektrisch Abfallpresse für Abfalltonne

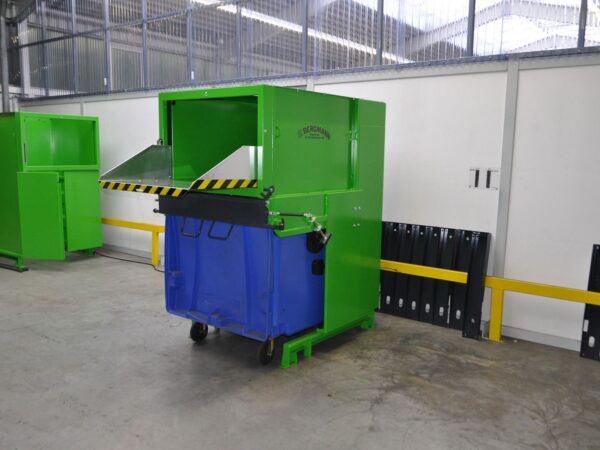

Presse für große Abfalltonnen
Presse ist geschlossen und schütz Abfalltonne vor Regen

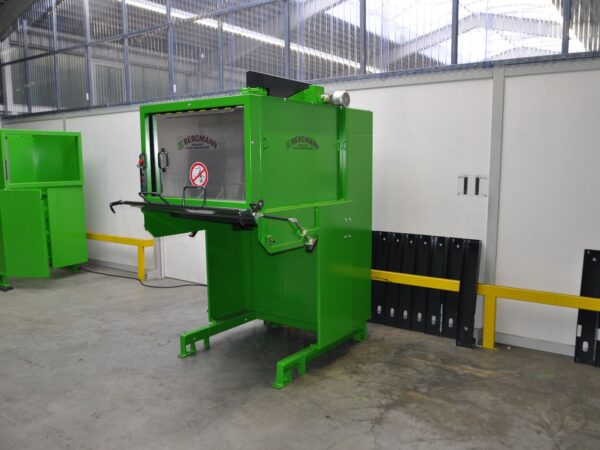

sicherer Stand
Presse für

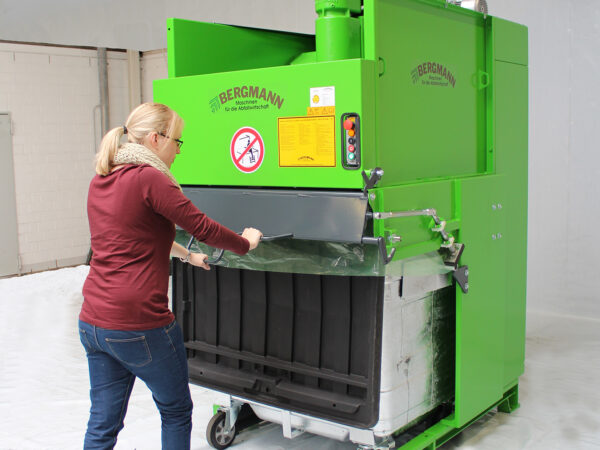

Veriegelung der Containerhalterung einer Abfallpress-Station 1100 E

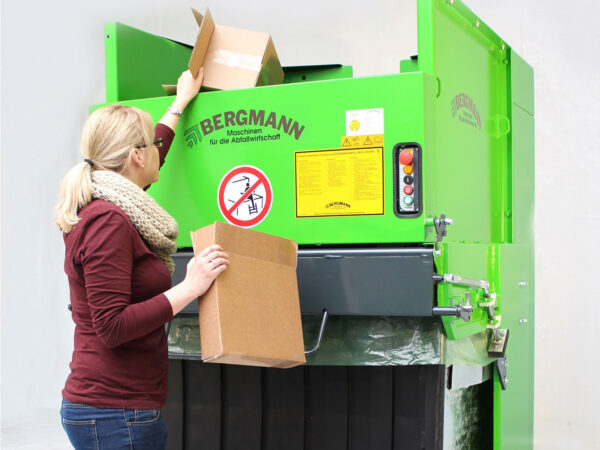

Befüllung einer Abfallpress-Station 1100 E
gefüllte Papiertonne nach Nutzung der Abfallpress Station
gefüllte Tonne mit gepresstem Papier
Bedienung Abfallpress Container

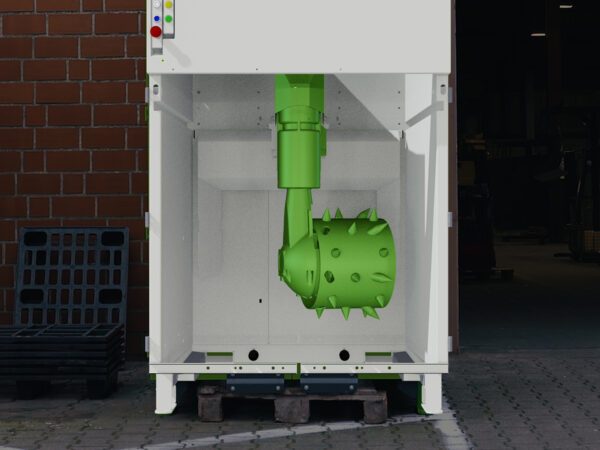

Walze der Abfallpress Station

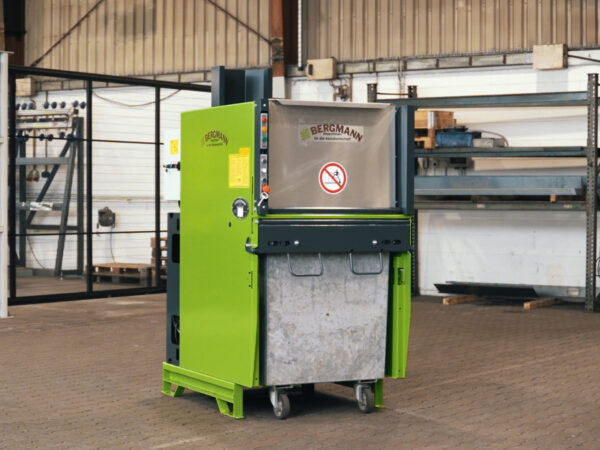

Ansicht Walzenpresse Abfallpress-Station
Elektroschaltung Abfallpresse

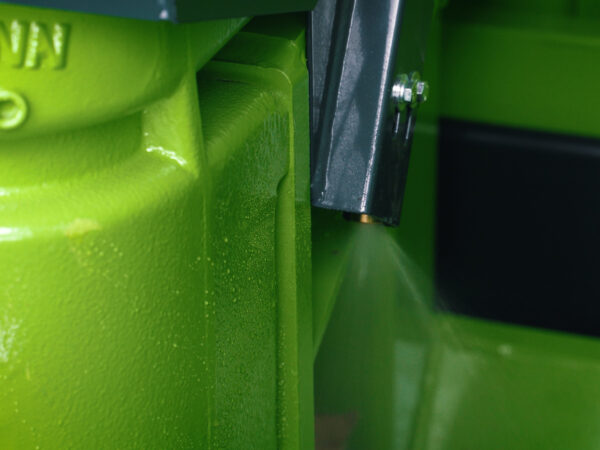

Sprühvorrichtung
Abpfallpressen mit 1400 und 800 Liter
Einschub eines Container für
Abfall-Pack-Station freigestellt
Abpfallpressen mit 1400 und 800 Liter
elektrische Packstation
elektrisch Abfallpresse für Abfalltonne
Presse für große Abfalltonnen

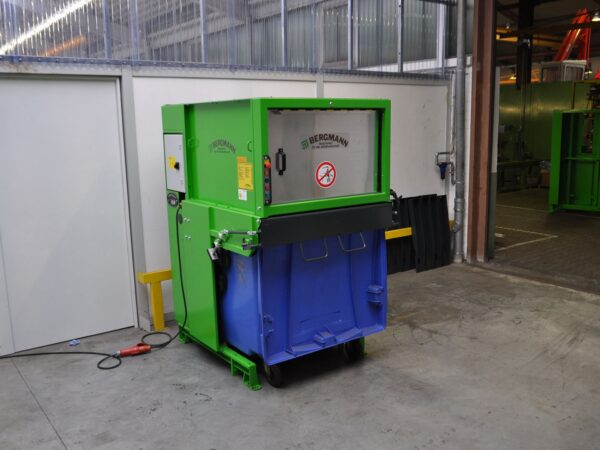

Presse ist geschlossen und schütz Abfalltonne vor Regen
sicherer Stand

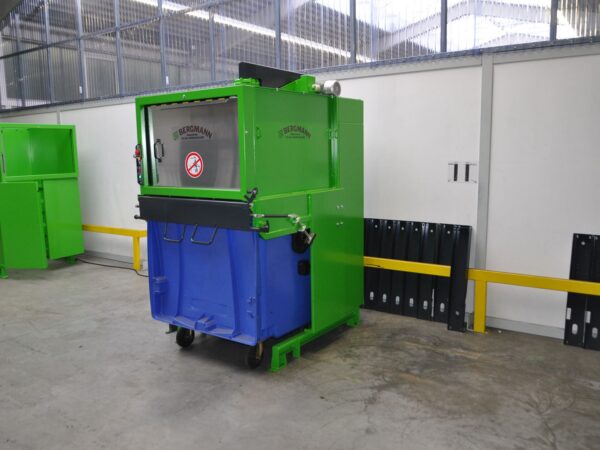

Presse für
Veriegelung der Containerhalterung einer Abfallpress-Station 1100 E
Befüllung einer Abfallpress-Station 1100 E

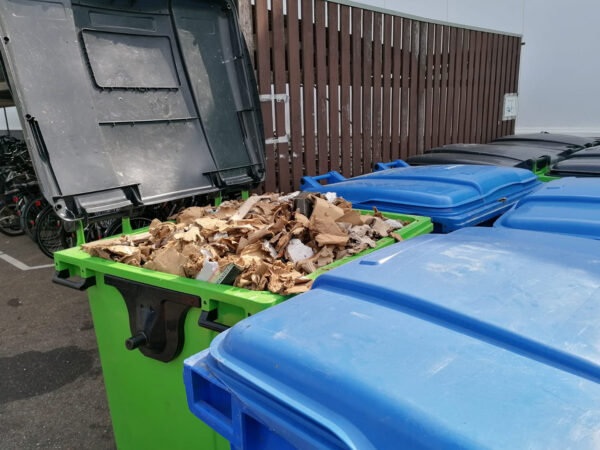

gefüllte Papiertonne nach Nutzung der Abfallpress Station

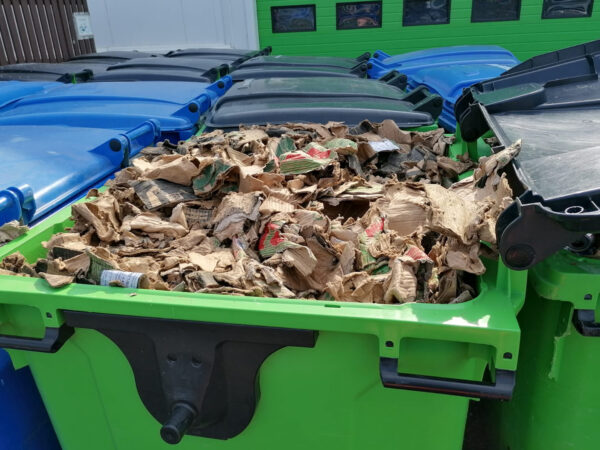

gefüllte Tonne mit gepresstem Papier

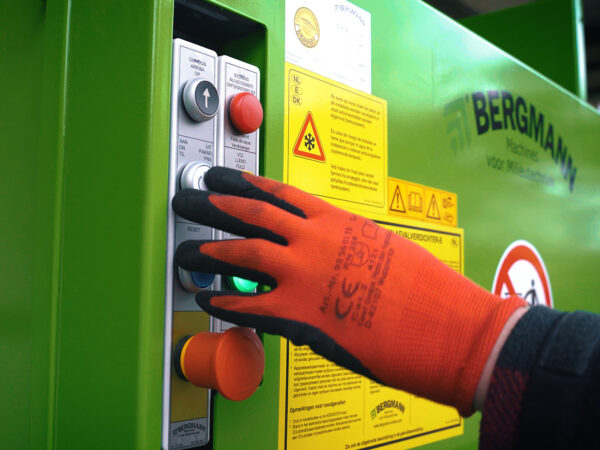

Bedienung Abfallpress Container
Walze der Abfallpress Station
Ansicht Walzenpresse Abfallpress-Station

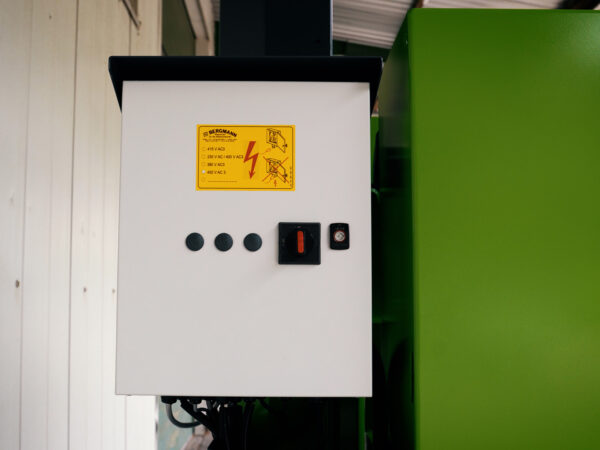

Elektroschaltung Abfallpresse
Sprühvorrichtung

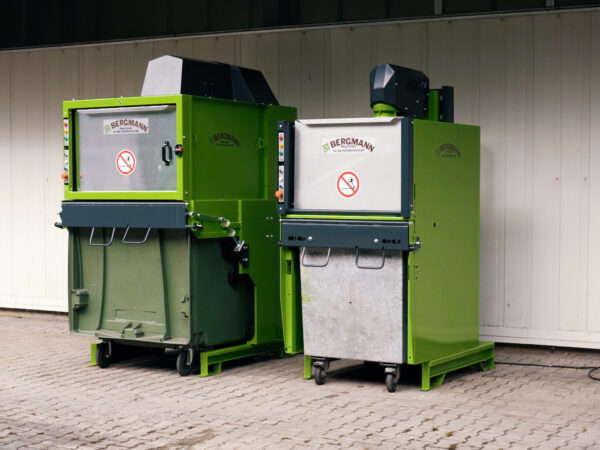

Abpfallpressen mit 1400 und 800 Liter
Einschub eines Container für

WASTE PACKING STATION APS 1100-E

Continuously feedable waste compactor for 1100 ltr standard roll containers

The waste packing stations (baling press) developed by BERGMANN combine the advantage of continuous filling with the efficient collection of waste and refuse directly at the point of origin. Compaction takes place directly in the 1100 liter standard roll containers, which can be picked up by waste disposal vehicles.
A low space requirement and high compaction performance enable considerable cost savings, as expensive and space-intensive large-capacity containers can be replaced.
The high BERGMANN quality level of a structurally and technically mature product and the quiet, low-maintenance drive are a matter of course for the APS 1100.

Send request Download area

Location: inside / outside, stationary

Drive: Electric

Location: Hospital, Hotel, Production plant, Restaurant, Retirement home, Service companies, Supermarket, Trade

Type of deployment: Waste compactor (baler) for recyclable waste and residual waste

Type of waste:

EXTREME COMPACTION

Compaction

In 1100 l roll containers, compaction rate up to 10:1 for residual and recyclable waste

Operation

Continuous filling via large filling chute, simple operation without any training

Installation

Small footprint, for indoor or outdoor use directly at the waste location.

Maintenance

Quiet, low-maintenance electric motors with robust compaction roller

Economic efficiency

Up to 80 % fewer disposal trips and costs - without the need for large containers

Work area

Easy emptying and transportation of the roll containers, clean and hygienic working environment

Robustness

Technically and constructively mature, CE-certified, "Made in Germany", long-term spare parts supply, worldwide service network

Accessories

Filling chute, roof, water sprinkling, flashing light/horn for full signal, ozone generator

Video

Experience the BERGMANN waste packing station in action!

Find out how waste volumes can be effectively reduced and costs saved at the same time. See for yourself why this solution is ideal for your waste compaction. Watch the video now!

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information
Unblock content Accept required service and unblock content

Description

Product name

Bergmann Waste Packing Station APS 1100-E

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Continuously feedable waste compactor for 1100 ltr standard roll containers

Types of waste

  • Residual waste
  • Household waste
  • Hospital waste
  • Food waste
  • Green waste
  • Mixed waste
  • Cardboard box

Locations

  • Supermarkets
  • Trade
  • Hotels
  • Restaurants
  • Hospitals
  • Senior centers
  • Production plant
  • Service companies

Dimensions

Width: 1450 mm
Depth: 1730 mm
Height: 2580 mm

Capacity

1100 ltr roll container
Roll container with flat lid

Insertion height

Aperture: 1890 mm
Chute option: 1470 mm

Dead weight

1.130 kg

Noise level

64 dB

Connection

400V / 3 Ph / 50 Hz + N / 3 kW

Roller speed

30 U/min

Equipment

  • Special compaction roller for paper and cardboard
  • Panel as throw-in edge
  • Electrical protection class IP 44
  • Car timer
  • Operating hours counter
  • Overload protection
  • Full signal via light signal

Special accessories

  • Filling chute
  • Special compaction roller for films with blade set
  • Cone roller with 24 cones for thick cardboard (cardboard tubes)
  • Roof
  • Additional full signal via horn or flashing light
  • Water sprinkling against dust formation
  • Ozone generator against unpleasant odors
  • and much more
  • … ask for special designs

Technical properties

  • Low space requirement
  • Large filler opening
  • High processing capacity
  • Low operating noise
  • Electrical protection class IP 44
  • Filling also possible via chutes or conveyor belts
  • Machine CE certified
  • Completely “Made in Germany” by qualified and experienced employees

Economic efficiency

  • BERGMANN invention and in-house development with decades of experience
  • Continuous feeding – even when the feed chute is open
  • Compression of waste to reduce the number of emptying trips to a minimum = drastic savings due to fewer disposal trips
  • Compaction results of up to 10:1 thanks to the special compaction roller, which grips, tears and compacts the filling material
  • Particularly suitable for collecting residual waste and recyclable waste (e.g. cardboard, packaging film, polystyrene, fruit crates, cans, etc.)
  • Reduction in disposal costs of up to 80%
  • Simple operation of the waste packing station
  • Convenient operation thanks to clearly arranged push buttons
  • The roll container enables easy handling of the compressed waste
  • They can be set up directly at the place where the waste is generated on your premises
  • Waste handling costs and therefore personnel costs are eliminated
  • Also ideal for continuous filling through chutes or conveyor belts
  • Low maintenance
  • Contribute to a clean working environment and thus increase occupational safety
  • Easy emptying and transportation of the compacted material
  • Minimization of floor space for waste storage and thus savings on the storage costs of conventional containers
  • The waste packing station replaces expensive and space-consuming large containers
  • Designed for tough continuous use
  • Low operating noise
  • Complete solution for clean, hygienic and, above all, space and cost-saving waste handling
  • Proven worldwide for over 20 years with the highest quality standards
  • Technically and constructively mature based on years of experience
  • High, fast and long-term availability of spare parts, guaranteed for 15 years
  • Worldwide service network

Mode of operation

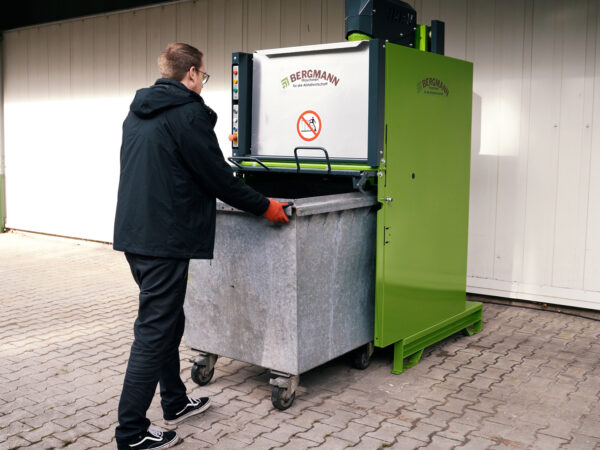

  1. Moving the roll container into the waste packing station.
  2. Continuous filling by anyone via the large filling chute.
  3. Collection, shredding and compaction of the waste by rotating compaction rollers.
  4. The highly compacted material can be easily removed and transported using roll containers. Subsequent collection by disposal company.
