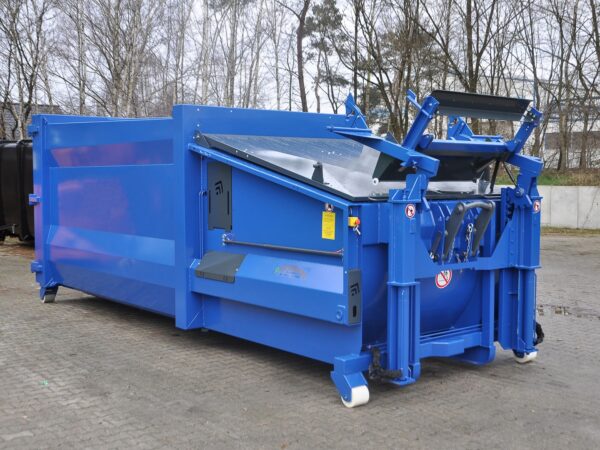

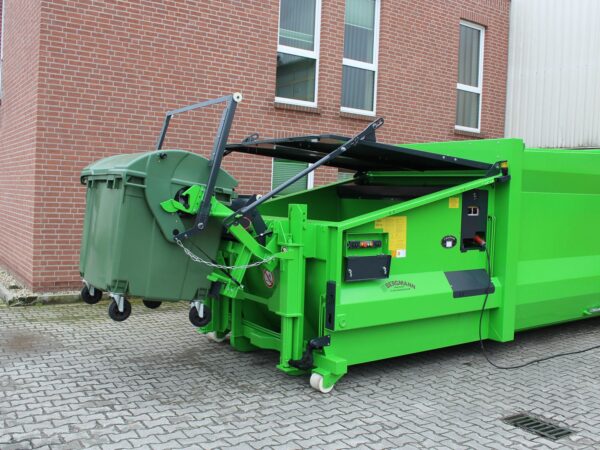

Abfall-Press-Container mit integrierter Kippvorrichtung

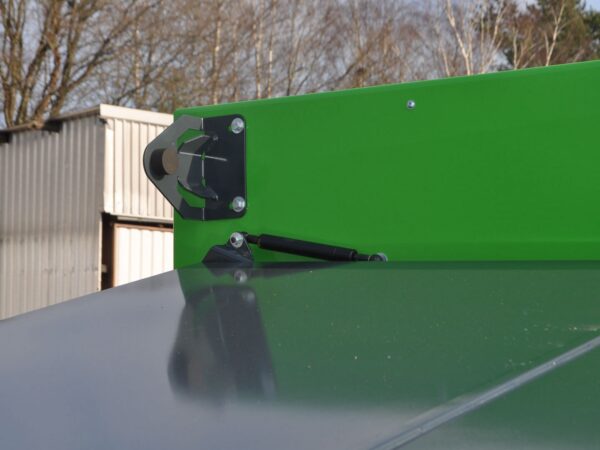

Detailansicht auf Luftfederung der Deckel

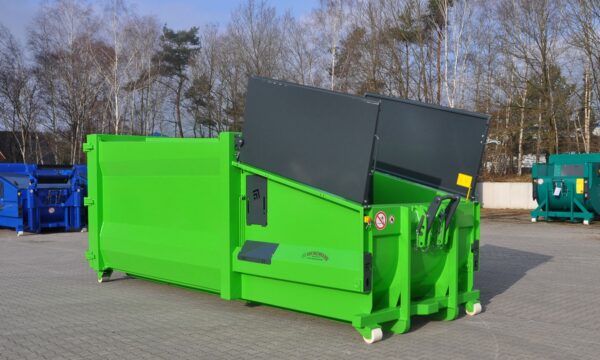

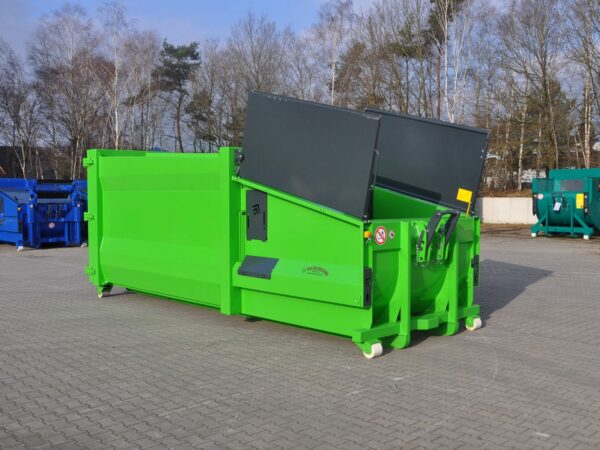

Deckel mit hydraulischem Schanier zur einfachen Öffnung

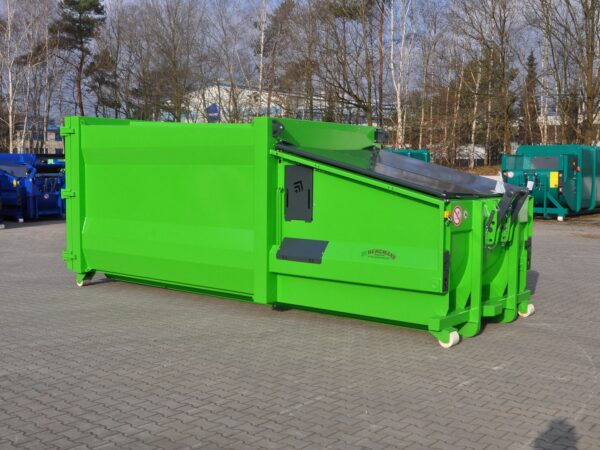

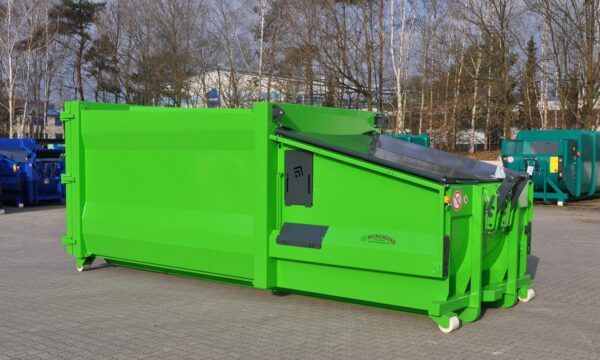

geschlossene Deckel mit hydraulischem Schanier

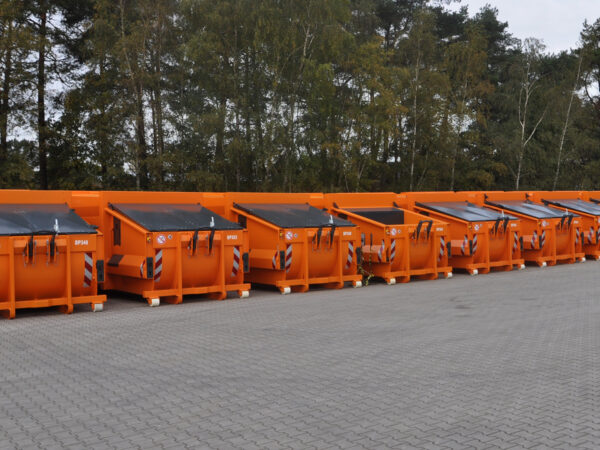

sieben Abfall-Press Container in einer Reihe

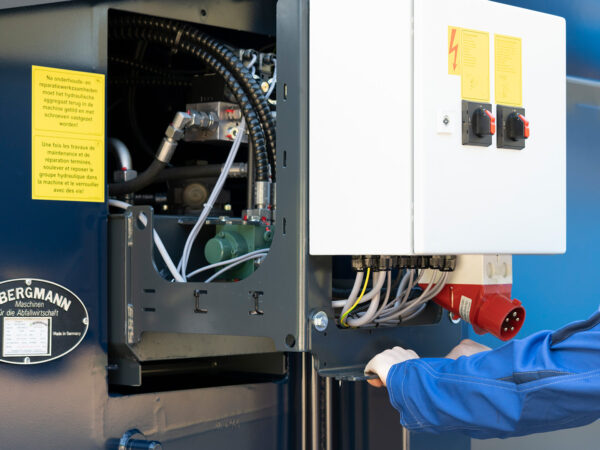

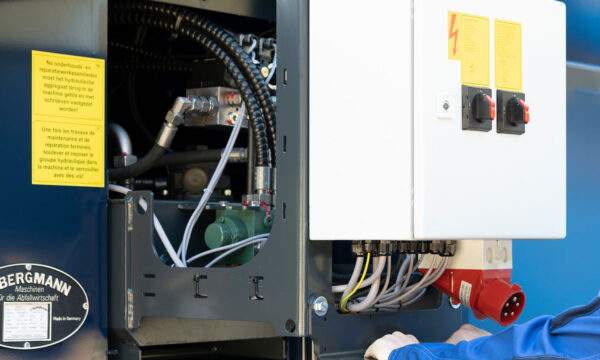

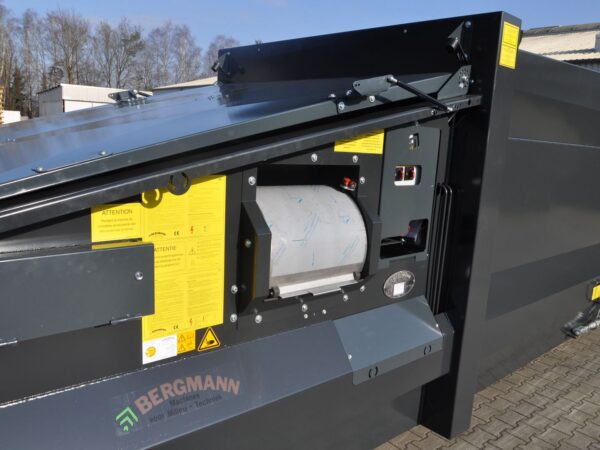

Blick in Maschineneinheit der Abfallpressbox

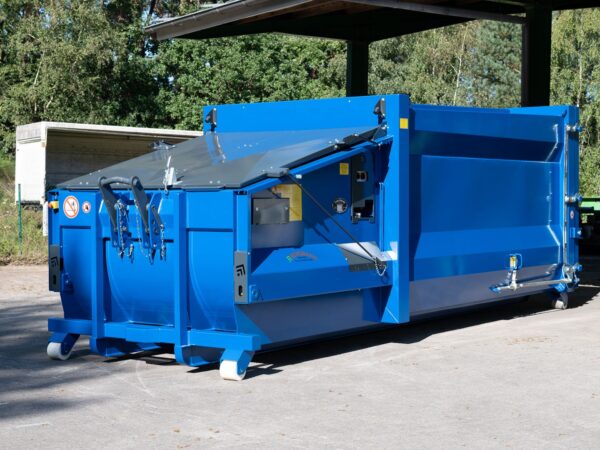

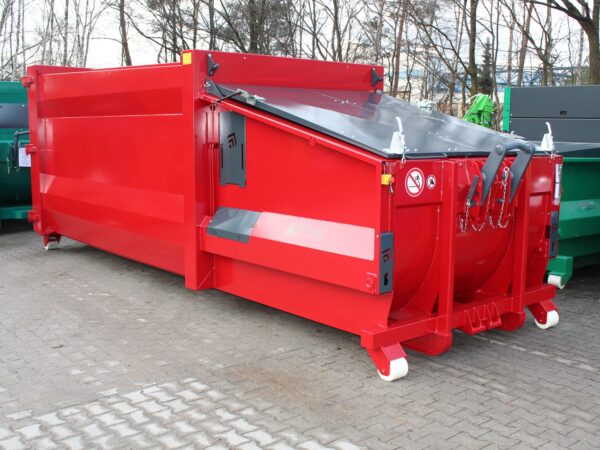

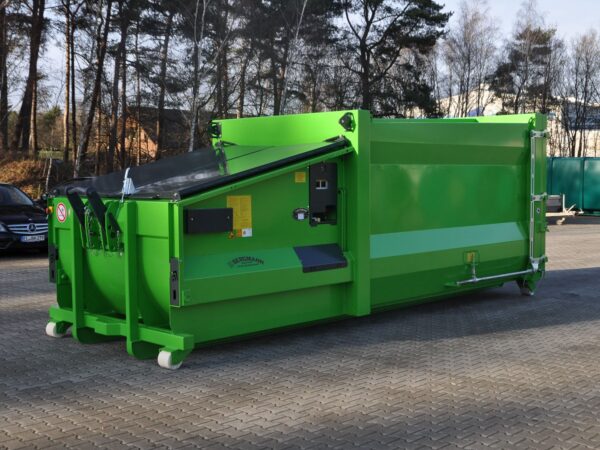

Alpha-Pack-BinAPB 1620 for roll-off tipper

Mobile waste compacting container for cardboard, paper, film

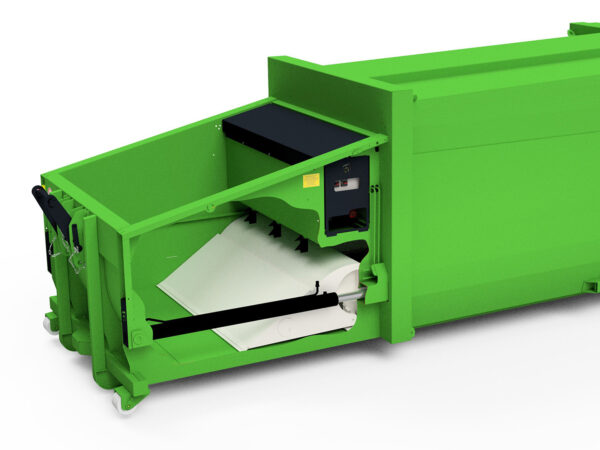

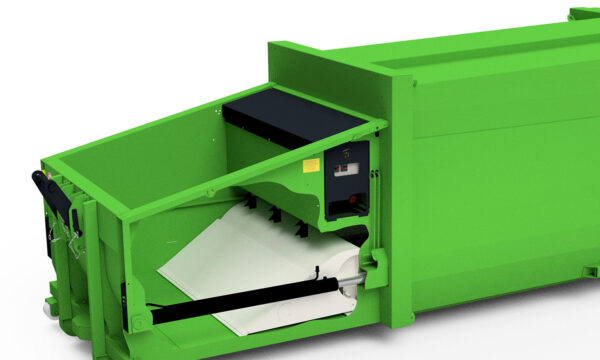

The Alpha-Pack-Bin type APB 1620 is a mobile compaction container that can be transported with the aid of roll-off vehicles. The Bergmann compaction principle efficiently compacts cardboard and recyclable materials. The linear arrangement of the hydraulic cylinders achieves maximum compaction results. In contrast to scissor-type cylinders, the APB 1620 is equipped with the self-cleaning compaction principle. This prevents repair work on cylinders or hydraulic hoses due to neglected cleaning work. The hydraulic unit can be pulled out to the side, allowing service technicians easy access to all relevant components for the annual inspection. The press piston on the APB 1620 consists of the main piston and a unique swivel-mounted union piston.

The APB 1620 was developed with the advantage of linearly arranged cylinders. This results in higher force transmissions of approx. 15% compared to the scissor-type press system.

Send request Download area

Location: mobile, outside

Drive: Electrohydraulic

Location: Agriculture, Container site, Industrial company, Manufacturing plant, Material yard, Print shops, Wholesale market

Type of deployment: Compaction of recyclable materials / recycling material

Type of waste:

Cardboard box
Paper
Plastic
Slide

EXTREMELY ROBUST

Performance

The linear cylinder arrangement and throw-over pistons ensure high compression with low energy consumption.

Efficiency

Continuous filling without interruption, significant reduction in disposal costs.

Technology

Self-cleaning pressing system, low-maintenance hydraulic block, pull-out unit for quick service access.

Emptying

Conical container shape enables clean, backflow-free emptying.

Operation

Clear control with auto timer, overload protection and full message display, optionally with GSM fill level message.

Safety & Quality

TÜV/GS/CE-certified, robust steel construction, 15-year spare parts availability, completely Made in Germany.

Flexibility

Adaptable to various roll-off tippers, modular design, optionally with lid, lift/tilt device or additional functions.

Sustainability

Fewer emptying trips, reduced operating costs, long service life - efficient and resource-saving.

Video

Experience the BERGMANN waste press boxes in action!

Find out how it reduces waste volumes, makes optimum use of containers and saves costs. See for yourself why it is the ideal solution for your waste compaction. Watch the video now!

You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

Unblock content Accept required service and unblock content

Description

Product name

Bergmann Alpha-Pack-Bin APB 1620

Manufacturer

Heinz Bergmann OHG, Von-Arenberg-Straße 7, D-49762 Lathen

Application

Mobile waste compacting container for cardboard, paper, film

Types of waste

Paper
Cardboard boxes
Slide
Dry materials and waste

Locations

Supermarkets
Trade
Distribution
Industry
Print shops
etc.

Useful capacity without pressing chamber

24 m³

Pressing force of the cylinders

up to 314 kN

Time signature

Forward/return stroke
35/36 s (single pump)
20/21 s (double pump)

Filling opening

Dimensions: 1800 x 1600 mm
Press section volume: 4.5 m³

Hook receptacle

Double-sided; can be folded down at the front

Castors

4 pcs. Plastic castors

Emptying aid

Conical container

Paintwork

RAL shade according to customer requirements

Equipment

Plug-in and fold-down mounting system at the front, making it quick and easy to adjust the mounting height to different dispenser types using bolts
Screwable mounting system at the rear, making mounting heights of 1450 mm and 1570 mm possible
Differential circuit for fast lifting times
Oil drip pan under hydraulic unit as standard
Central rainwater drainage
Car timer
Oil level indicator and oil level monitoring
Overload protection
Operating hours counter
Easy retrofitting of a lid over the filler opening possible
Hydraulically controlled and therefore robust changeover valve
2 front castors and 2 rear castors
Pull-out hydraulic unit
Standard ratchet extension

Special accessories

¾ Full and/or 100% full message
Raising the side panels in various designs
Filling level report via GSM module to you or to the disposal company
Double hydraulic pump for even shorter lifting times
Lid attached at the back or side via the filler opening (protects against filling by third parties and the ingress of rainwater)
Rubber sealing of the lid (reduces odors and ensures watertightness)

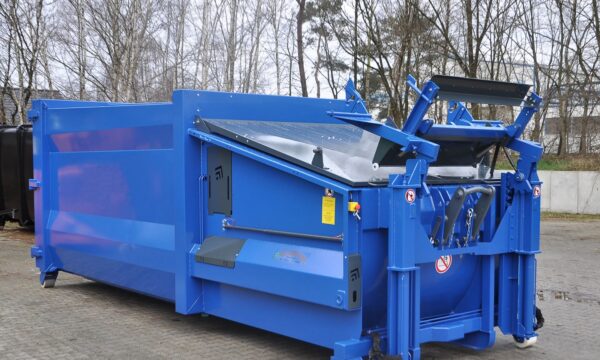

Integrated lifting and tipping device for cone or comb dumping (lifts the waste containers and tips the contents into the compactor)
Remote control via cable
Deletion connection
Flap above the control keypad, lockable against vandalism
… and much more
… ask for special designs

Technical properties

Large filler opening
High processing capacity
High pressing force due to linear cylinder arrangement
Press plate guide with 100% pressing force over the full stroke length
High filling weights of 4.5 tons of cardboard on average in the APB 1620-SN/20 and more
Robust, hydraulic drive unit with low-maintenance hydraulic block
Bottom of the filler opening made of highly wear-resistant quality steel
Side-hinged door with 3-point central locking via easy-to-operate ratchet lock
Retaining claws on the crushing edge and the large immersion depth of the plunger prevent the material from swelling back
Easy to service via hydraulic unit that can be pulled out to the side
Great stability with economical dead weight
Container is continuously welded
Completely “Made in Germany” by qualified and experienced employees

Economic efficiency

BERGMANN in-house development
Ideal for compacting recyclable materials such as paper, cardboard, film, etc.
Large filler opening
Proven maximum compaction thanks to the BERGMANN-typical linear arrangement of the press cylinders. The waste is thus compacted to a fraction of its original volume

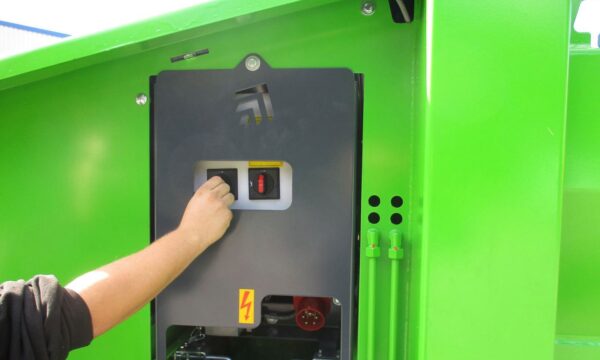

Convenient operation thanks to clearly arranged push buttons
Low operating noise
Reduction in disposal costs of up to 75%
Long machine service life due to less frequent emptying = high availability on site
Drastic savings by reducing the number of waste disposal trips to a minimum
Reduction in personnel costs for waste handling
Minimization of floor space for waste storage. This results in savings in storage costs and space for conventional containers
Easy to convert and upgrade thanks to the modular design. This makes it easy to adapt to different locations
Highest quality standard for years
Technically and constructively mature based on years of experience
High, fast and long-term availability of spare parts, guaranteed for 15 years!
Worldwide service network
