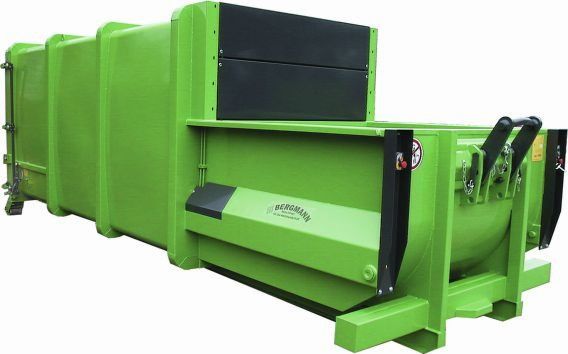

Alpha-Pack-Bin APB 607

BERGMANN Alpha-Pack-Bin

Alpha-Pack-Bin APB 607

for roll-off skip loaders

  • Mobile waste press container with throw-over blade system for cardboard boxes, paper and foils
  • Roll-off skip loader version
  • Electrohydraulic drive
  • Modular structure for flexible application and rigging possibilities
  • Special designs per customer’s request

Working method

  1. Illustration of the self-cleaning pendulum blade with throw-over blade system in front position. During the compactor stroke and the following return stroke, the entire filling area is available for continuous filling.
  2. Illustration of the self-cleaning pendulum blade with throw-over blade system in extreme rear position. Thanks to the throw-over blade system, the material thrown in during the preceding compactor stroke is thrown in front of the compacting piston.
